8-2a25t
Double-Ended Shear Beam
25 Ton (25,000 kg)
IP68 Hermetically Laser-Sealed (Submersible to 1.5m)
Heavy truck scales, static vehicle weighbridges, track scales, railway weigh platforms, and large industrial silo hoppers.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +80°C
نوع المعدن
17-4 PH Stainless
Self-centering center-loaded design with anti-rotation lock; high immunity to dynamic side and braking forces.
8-2b22t
Rocker Column Compression
22 Ton (22,000 kg)
IP68 Hermetic Laser Seal
Pit-mounted and pitless truck scales, modular weighbridge decks, cement and aggregate bulk batchers.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +75°C
نوع المعدن
Nickel Alloy Steel
Self-aligning spherical load buttons; excellent recovery under longitudinal vehicle movement.

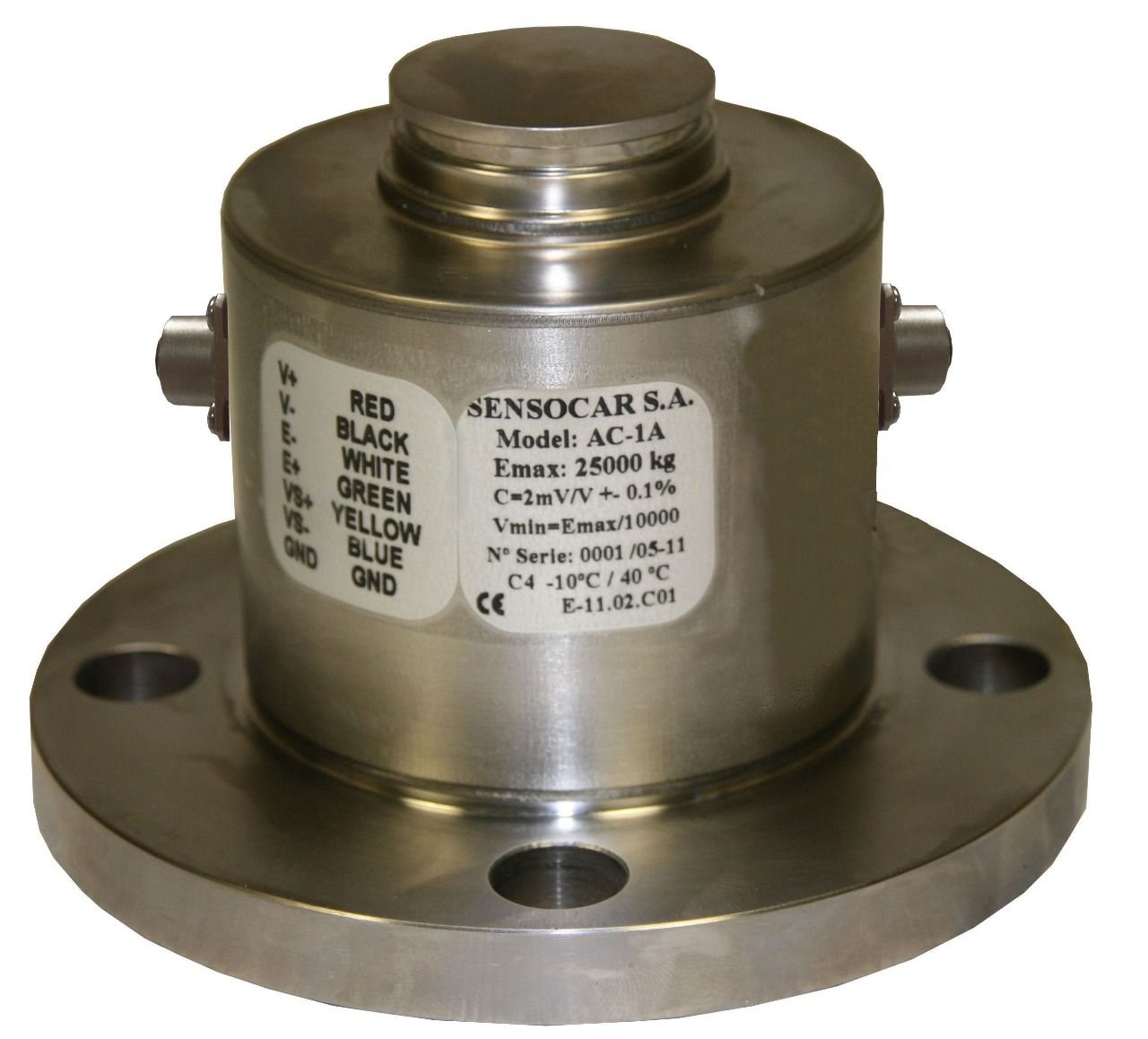

ac-1a-25t
Canister Compression Pillar
25 Ton (25,000 kg)
IP68 / IP69K (Full High-Pressure Washdown Resistant)
Aggressive chemical environments, oil refineries in Basra, marine ports, cement factories.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +80°C
نوع المعدن
17-4 PH Stainless
Integrated gas-discharge lightning arrestor protecting against electrical thunderstorms.

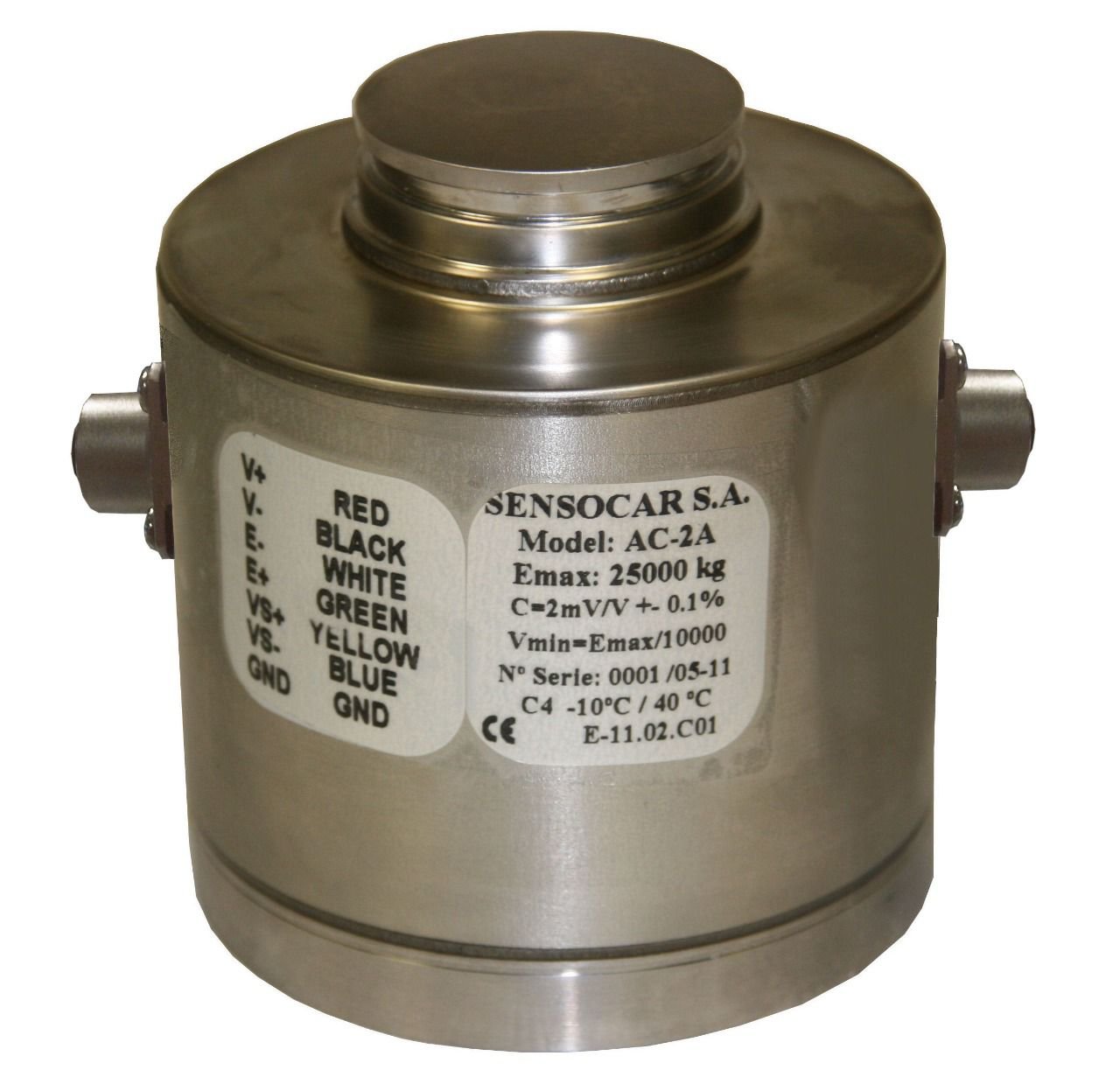

ac-2a-25t
Rocker Pin Compression
25 Ton (25,000 kg)
IP68 Hermetically Welded
Standard steel platform weighbridges, industrial weighbridges up to 80-100 tons.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +70°C
نوع المعدن
Nickel Alloy Steel
Convex contact surfaces eliminate side load errors and mechanical binding.

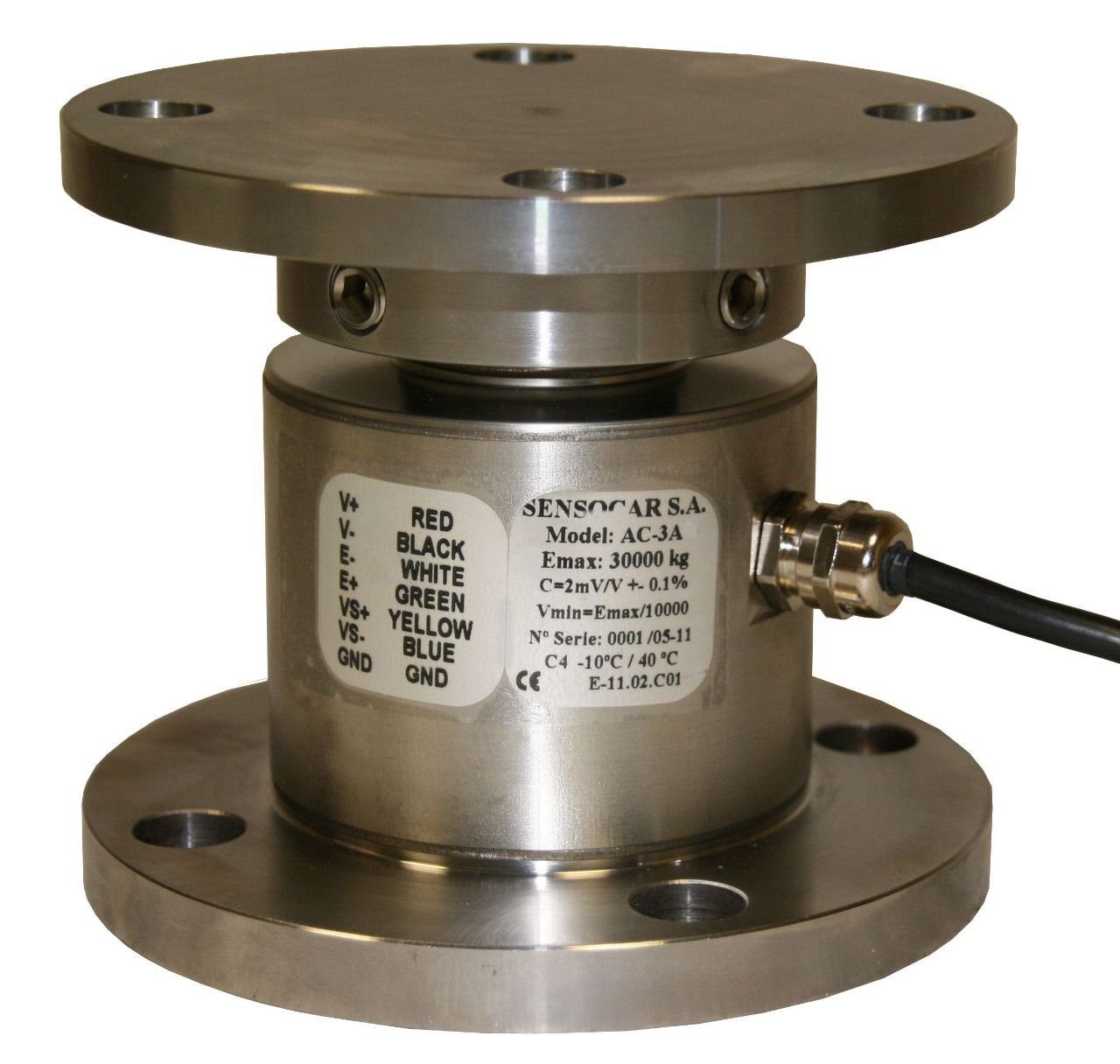

ac-3a-30t
Heavy Rocker Column Compression
30 Ton (30,000 kg)
IP68 & IP69K Waterproof / Submersible
100t, 120t, and 150t extreme duty weighbridges, steel mill transport, quarry scales.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +85°C
نوع المعدن
17-4 PH Stainless
Anti-spin pin prevents twisting; superior fatigue life under non-stop heavy truck traffic.

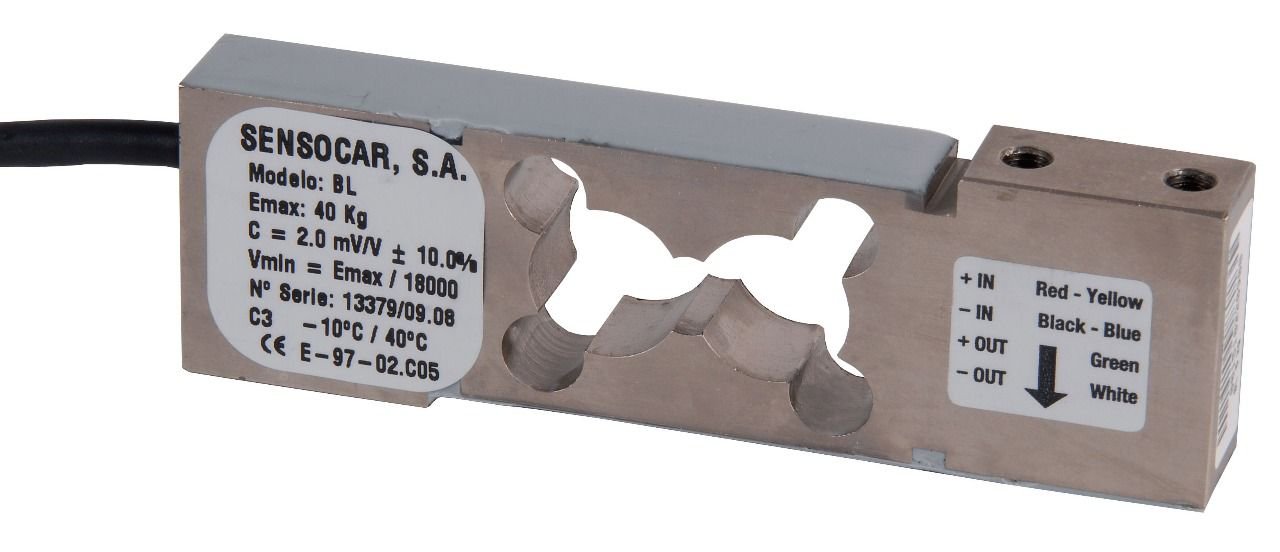

bl-40kg
Single-Point Parallel Beam
40 kg
IP65 Silicone Sealed
Industrial packaging machines, electronic bench scales, bag filling dispensers.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +60°C
Corner-compensated for platform sizes up to 400x400mm with zero off-center error.

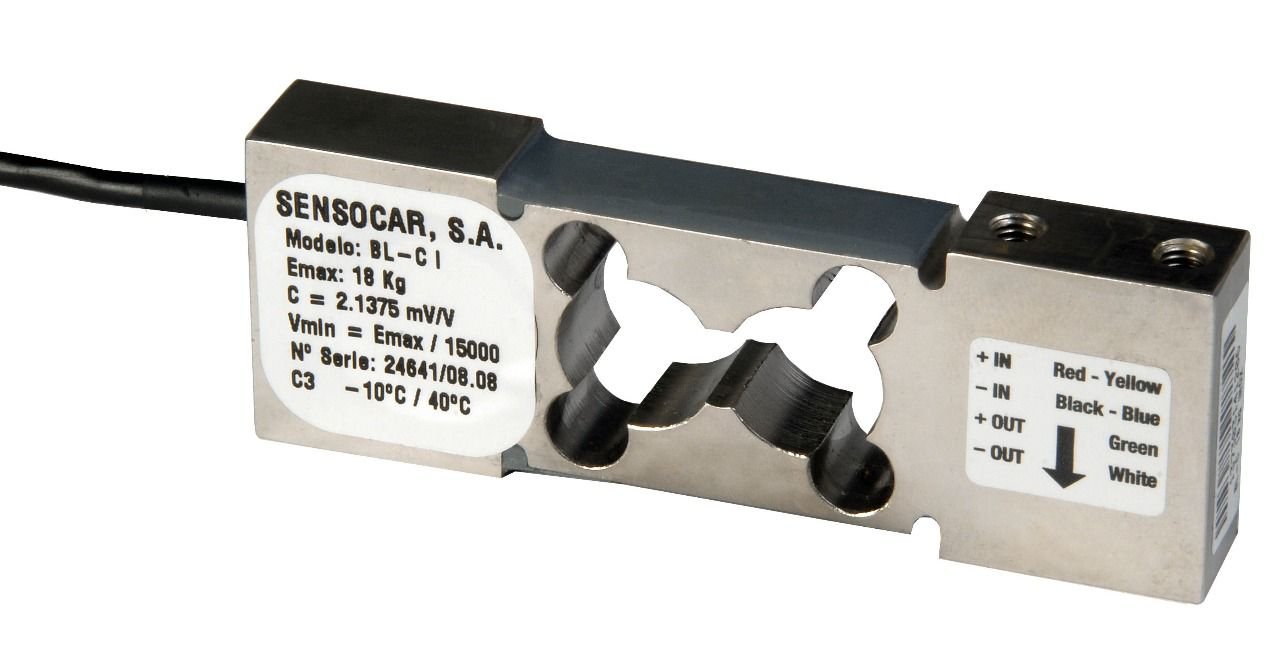

bl-c-18kg
Single-Point Platform Beam
18 kg
IP65 Moisture Proof
Retail pricing scales, benchtop counting scales, postal parcel scales.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +55°C
نوع المعدن
Nickel Alloy Steel
Ultra-stable zero balance; high repetition rate for assembly lines.

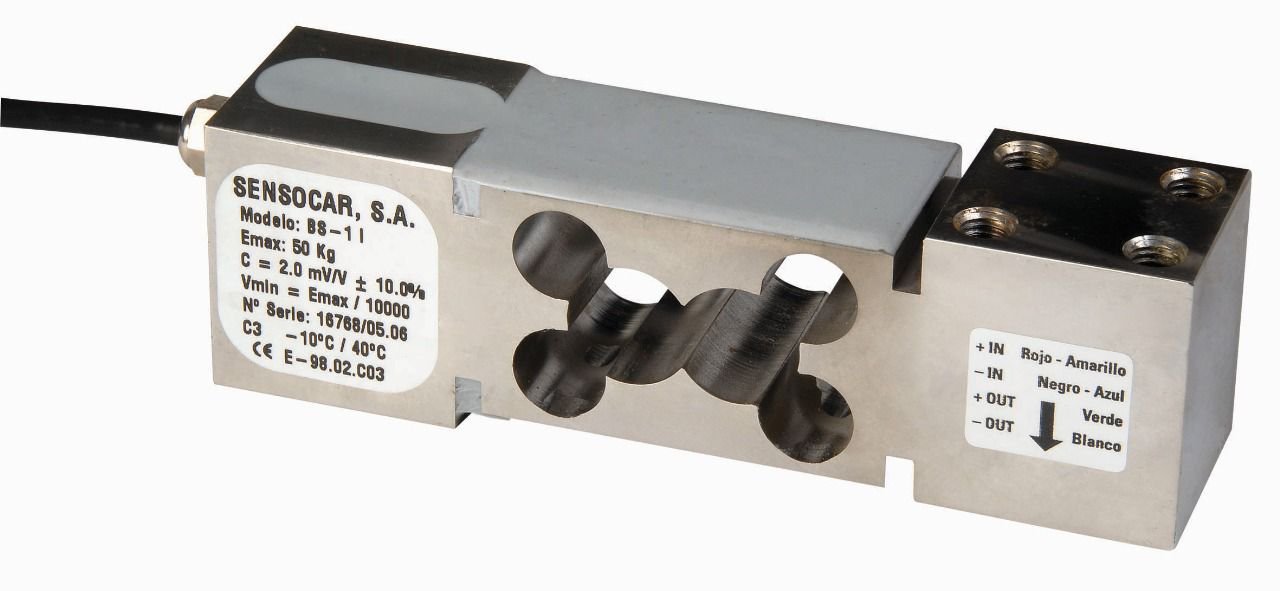

bs-1-50kg
Cantilever Bending Beam
50 kg
IP68 Hermetically Sealed (Laser Welded Bellows)
Chemical dosing hoppers, conveyor belt scales, washdown food processing platforms.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +70°C
نوع المعدن
17-4 PH Stainless
Stainless steel bellows protection prevents dust, moisture, and chemical vapor penetration.

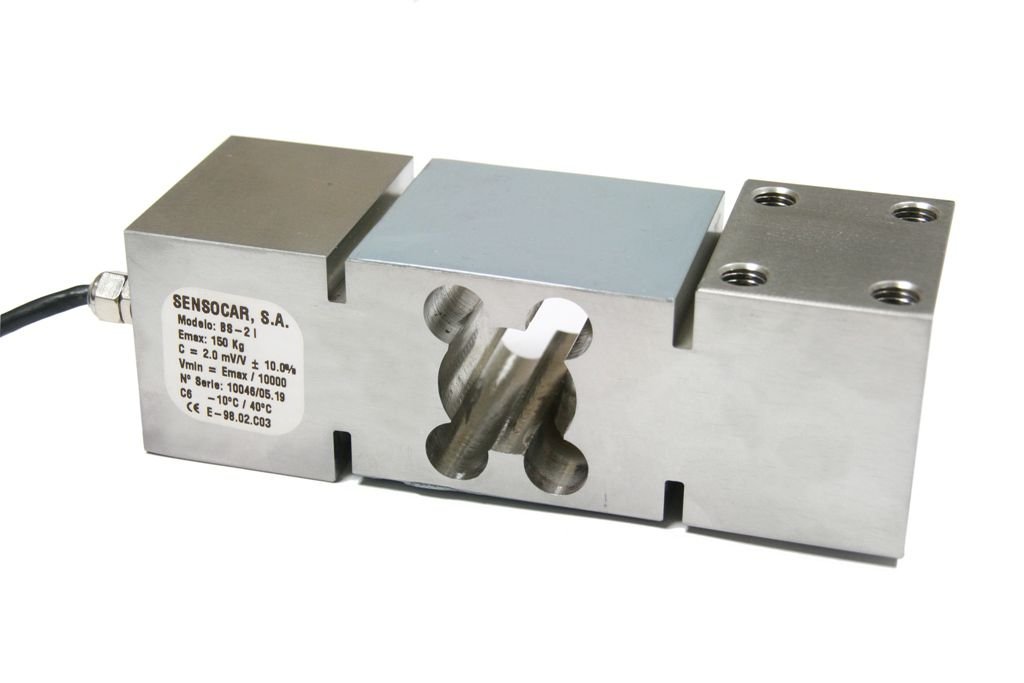

bs-2-150kg
Bending Beam Load Cell
150 kg
IP67 Weatherproof
Floor platform scales, small hopper scales, vessel weighing assemblies.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-25°C to +70°C
نوع المعدن
Nickel Alloy Steel
Threaded blind hole loading for fast mounting; minimal creep and high linearity.

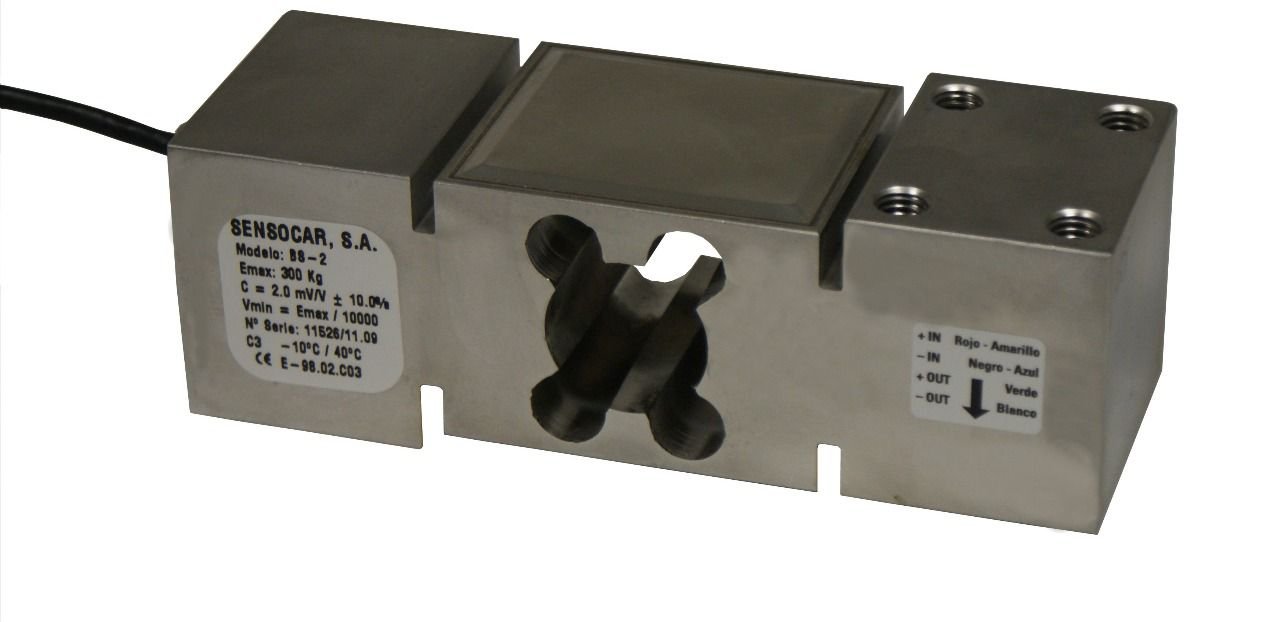

bs-2-300kg
Bending/Shear Beam
300 kg
IP67 / IP68 Sealed
Low-profile pallet scales, big-bag filling stations, vessel weight batching.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +70°C
نوع المعدن
17-4 PH Stainless
Excellent thermal stability and mechanical shock resistance.

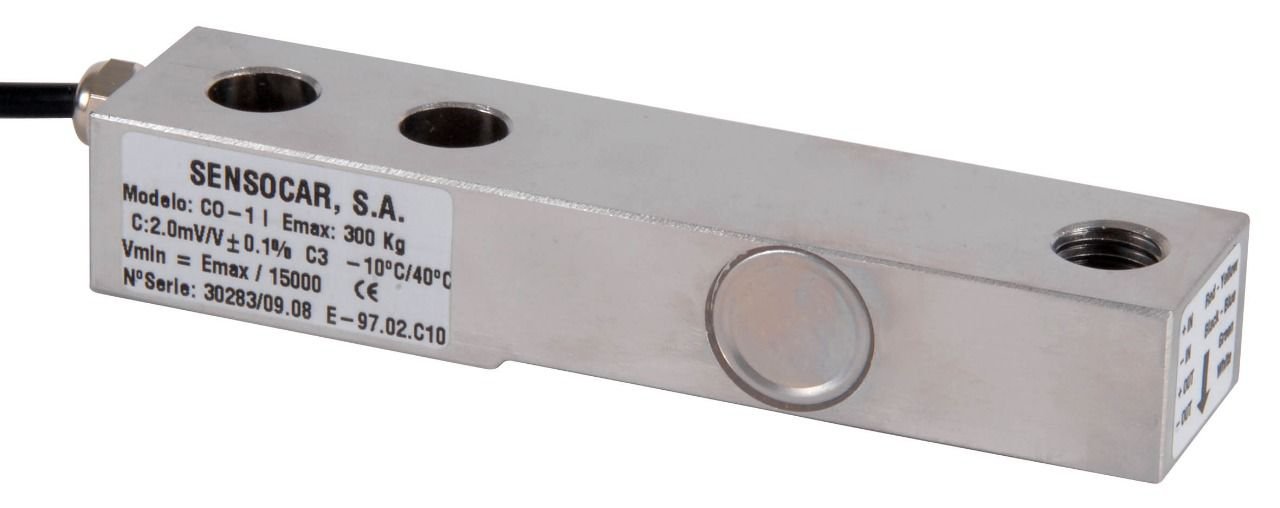

co-1-300kg
Low-Profile Canister Compression
300 kg
IP67 Sealed
Center-point tank mounts, reactor weighing, compact press force testing.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +65°C
نوع المعدن
17-4 PH Stainless
Extremely compact height fits into tight machinery envelopes.

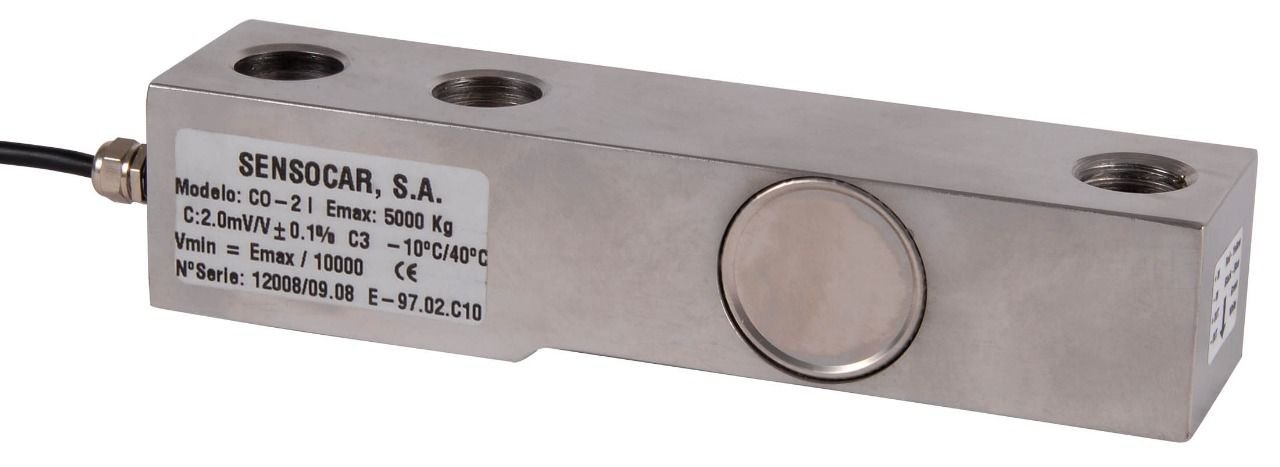

co-2-5t
Compression Button / Canister
5 Ton (5,000 kg)
IP68 Hermetic Seal
Concrete batching plant hoppers, asphalt silos, tank level weighing.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +75°C
نوع المعدن
17-4 PH Stainless
Spherical load button reduces sensitivity to structural tilting and ground vibration.

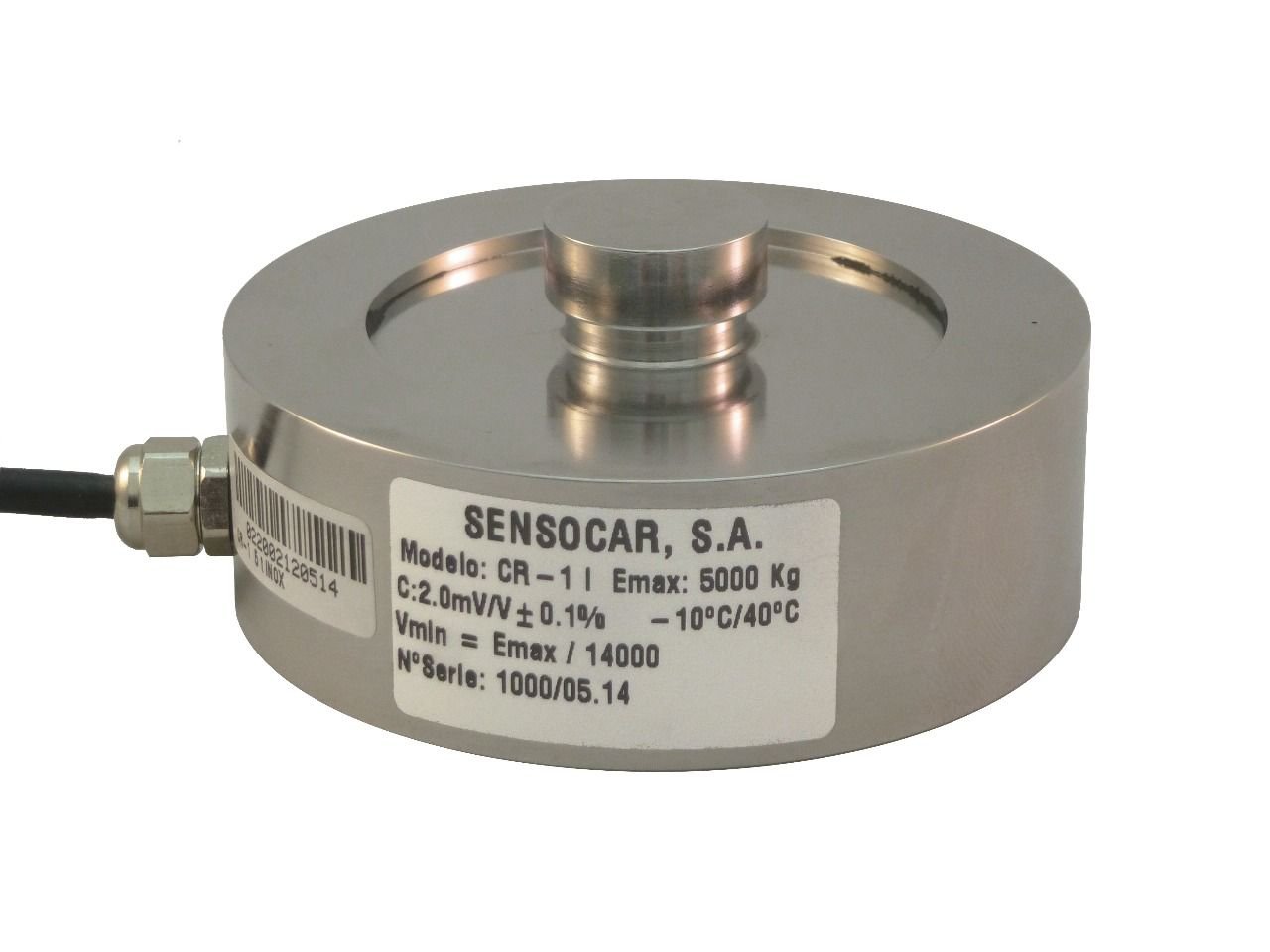

cr-1-5t
Tension Link / Crane Hook
5 Ton (5,000 kg)
IP67 Environmental Protection
Crane scales, hanging overhead hoists, wire rope tension monitoring, winch testing.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
200% FS Safe
نطاق الحرارة
-25°C to +70°C
نوع المعدن
Nickel Alloy Steel
400% safety rupture factor ensures maximum operator safety during overhead lifting.

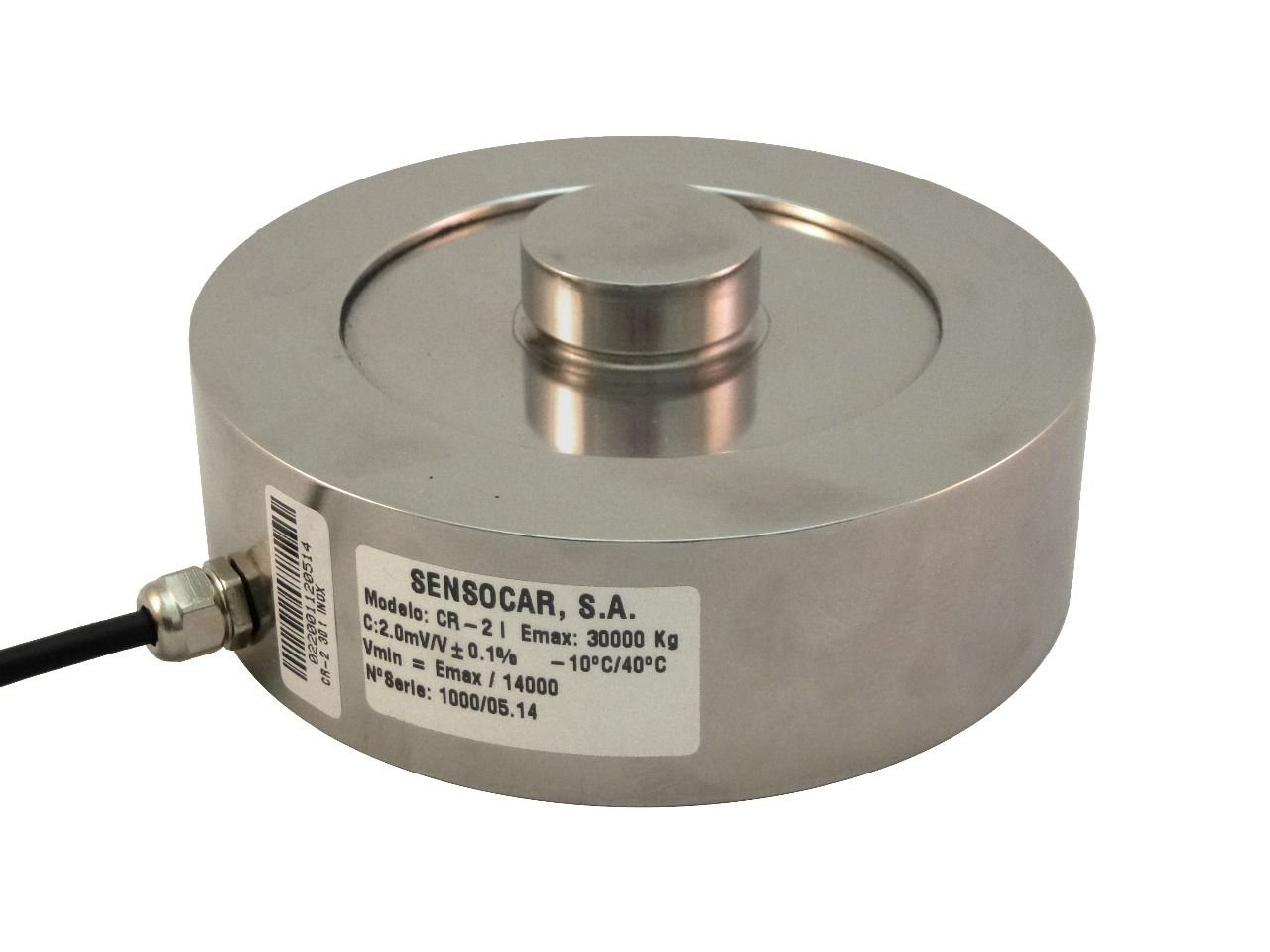

cr-2-30t
Heavy Tension Link / Shackle Load Cell
30 Ton (30,000 kg)
IP68 Heavy Water & Dust Sealed
Port gantry cranes, offshore oil rigs, steel ingot lifting, heavy shipyard tension rigs.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
200% FS Safe
نطاق الحرارة
-35°C to +80°C
نوع المعدن
Nickel Alloy Steel
Engineered for extreme shock loads and harsh weather in Basra marine terminals.

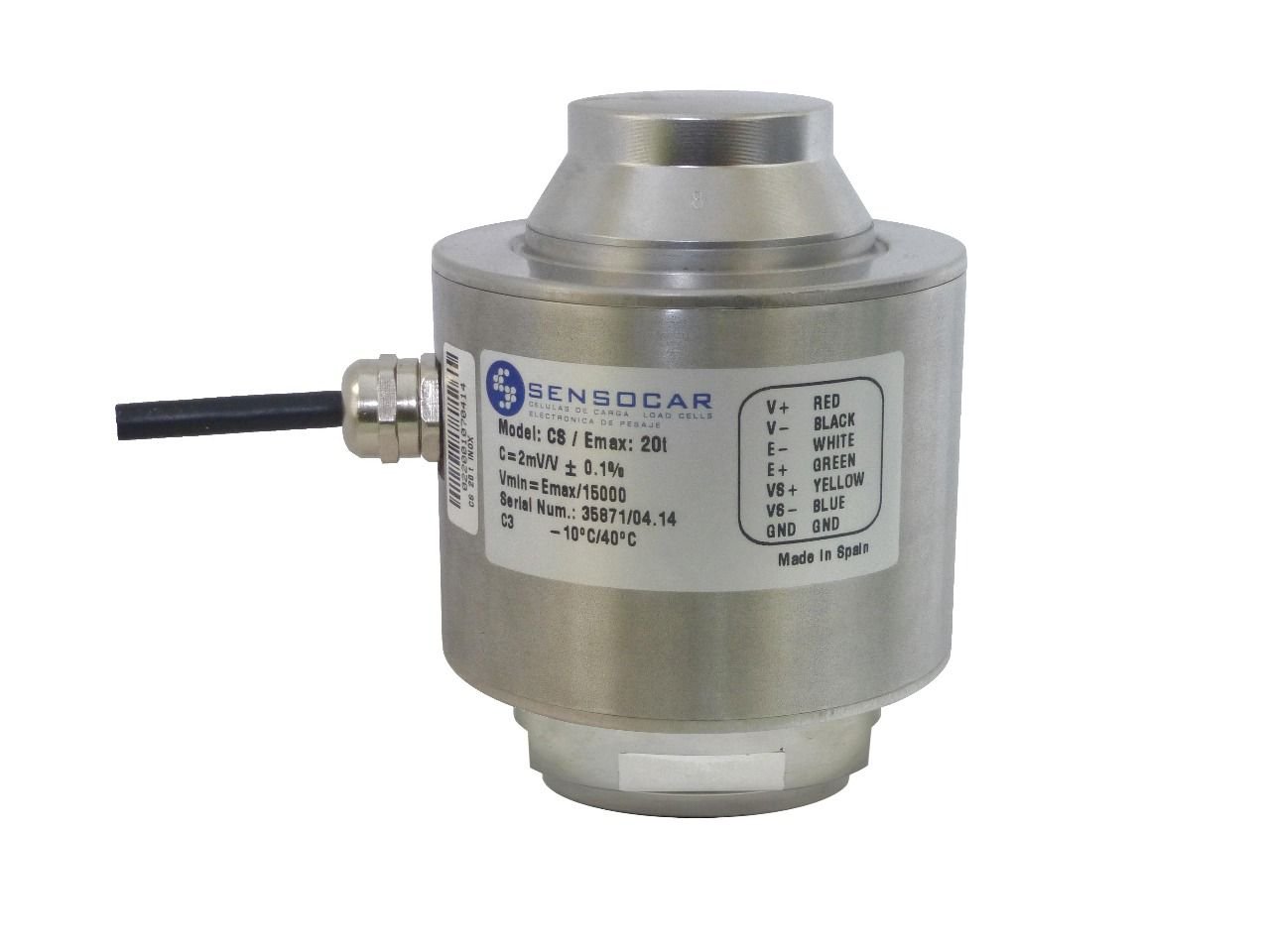

cs-20t
Column Compression
20 Ton (20,000 kg)
IP68 Laser Welded
Medium-capacity weighbridges (60t–80t), axle scales, grain elevator weighing.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +75°C
نوع المعدن
Nickel Alloy Steel
Cost-effective column compression design with proven track record across Iraq.

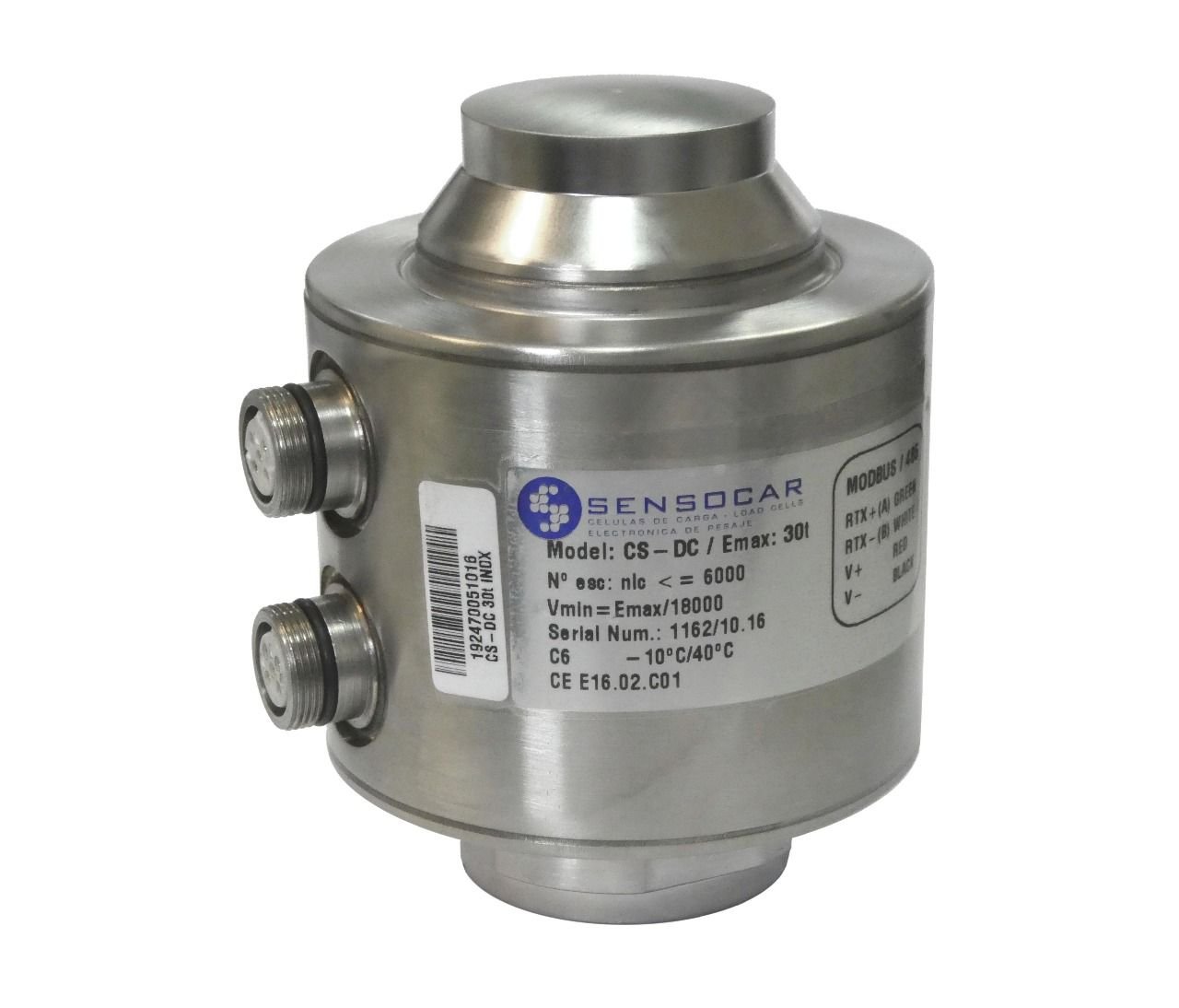

cs-dc-30t
Digital Canister Compression
30 Ton (30,000 kg)
IP68 / IP69K (High-Pressure Washdown & Submersible)
Advanced smart weighbridges, automated highway toll stations, unmanned scale facilities.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +80°C
نوع المعدن
17-4 PH Stainless
Individual load cell addressability; diagnostic software pinpoints failing corner instantly.

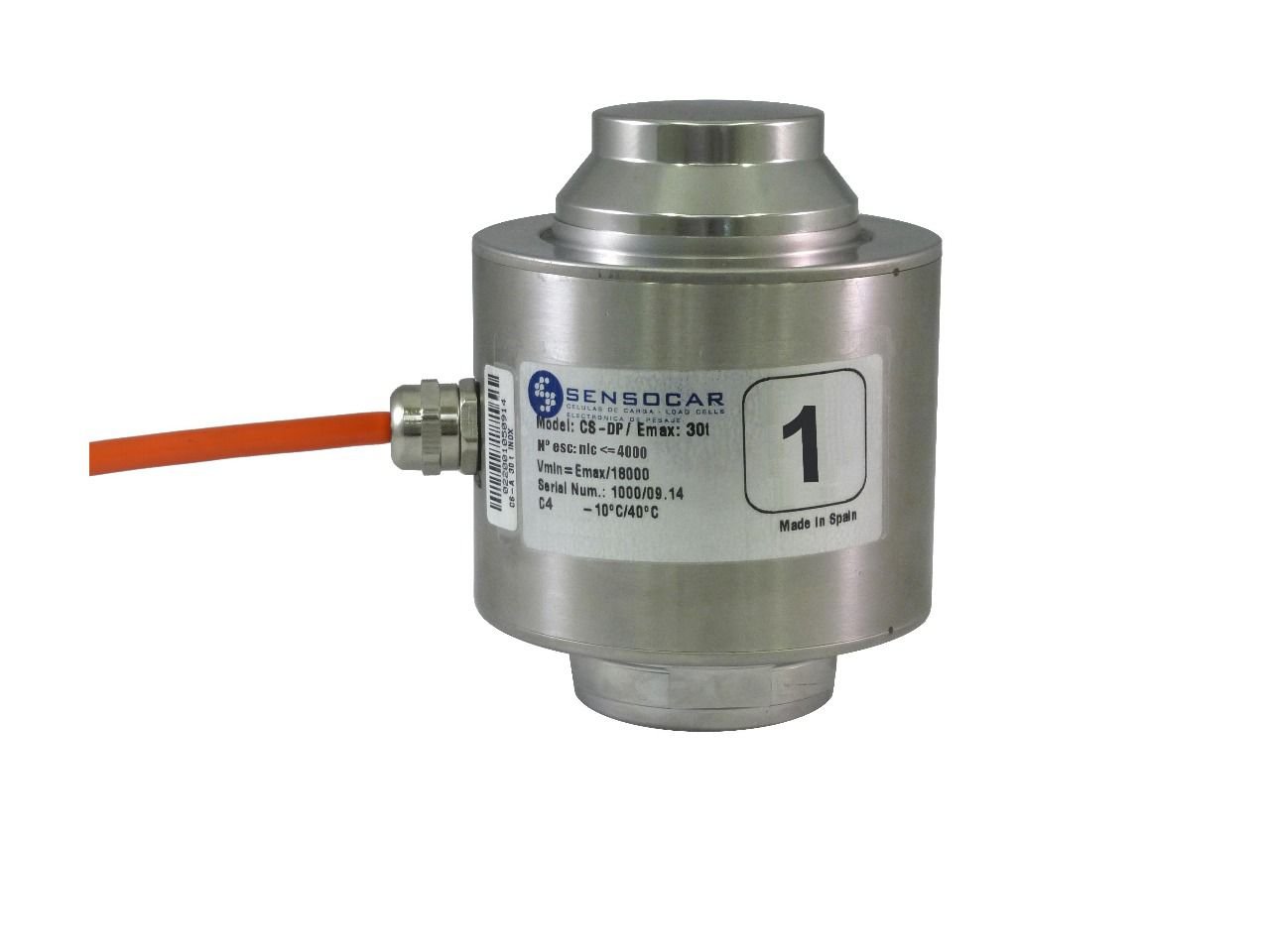

cs-dp-30t
Digital Rocker Pin Compression
30 Ton (30,000 kg)
IP68 Hermetically Sealed
Heavy logistics truck scales, automated customs border weighing checkpoints in Iraq.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +75°C
نوع المعدن
17-4 PH Stainless
Immunity to electrical noise; cables can run up to 1200 meters without signal degradation.

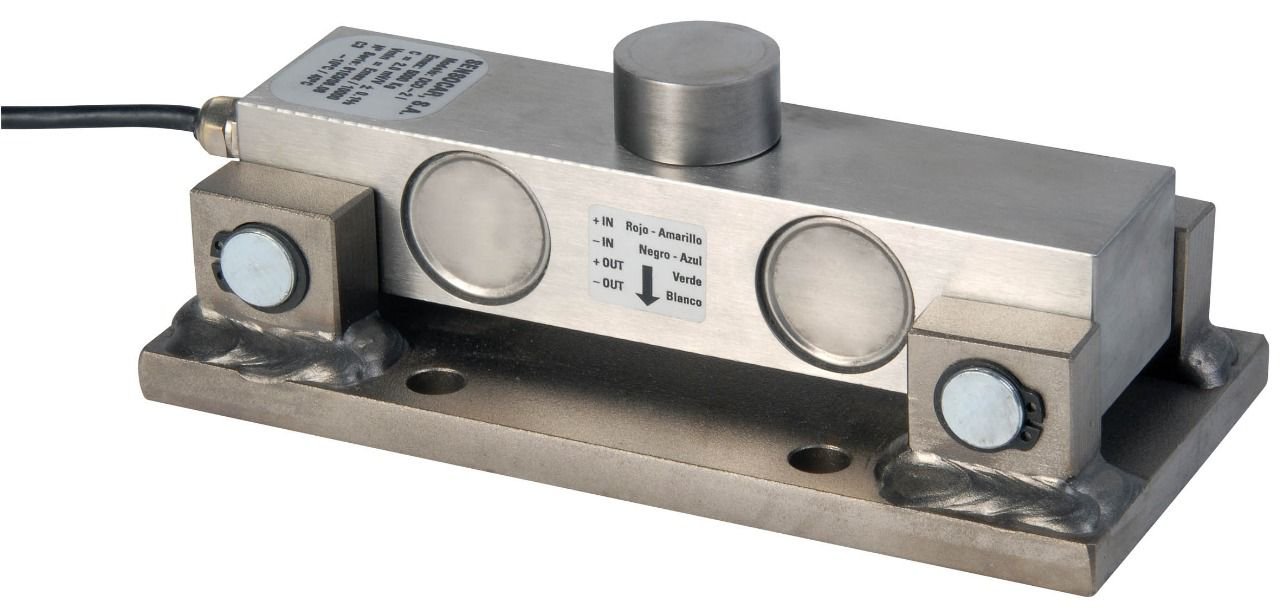

dco-2-5t
Digital Compression Pillar
5 Ton (5,000 kg)
IP68 Hermetic Seal
High-accuracy industrial hopper scales, asphalt mix plants, chemical batch reactors.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +70°C
نوع المعدن
17-4 PH Stainless
Eliminates analog junction boxes; each load cell is calibrated independently in factory.

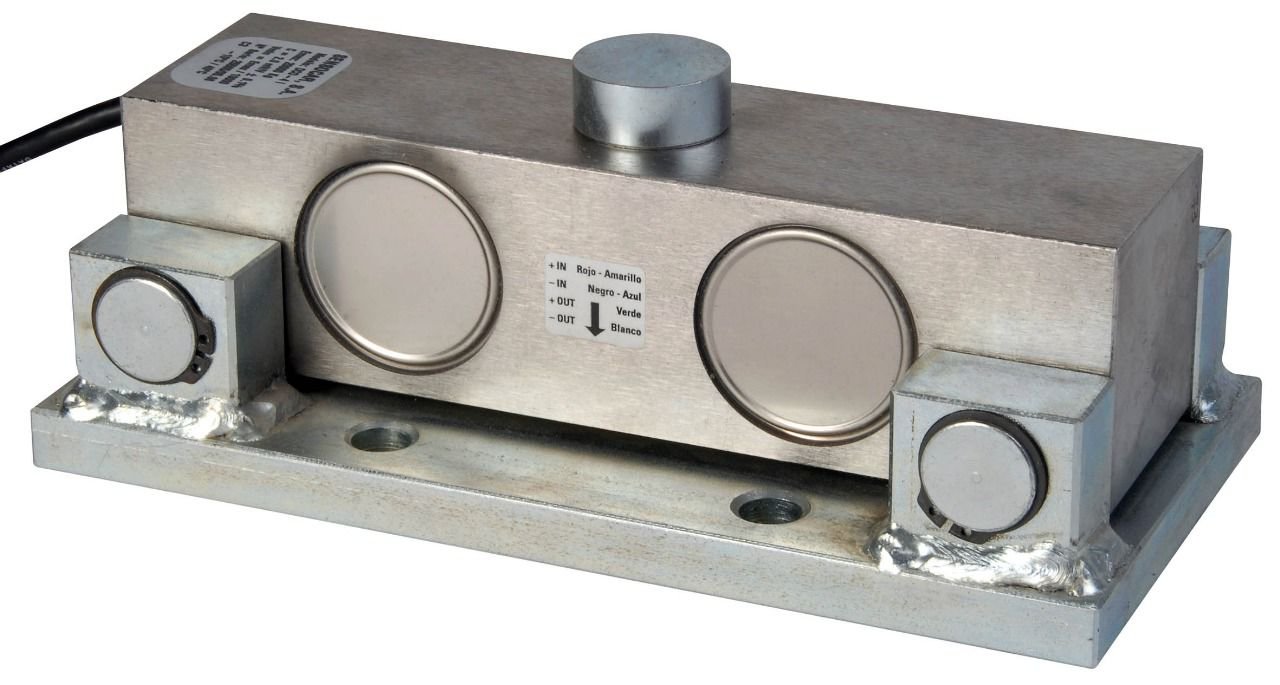

dco-2-25t
Heavy Digital Canister Compression
25 Ton (25,000 kg)
IP68 / IP69K Hermetic Protection
Flagship weighbridges, multi-platform tandem truck scales, port terminal weigh stations.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +80°C
نوع المعدن
17-4 PH Stainless
Equipped with surge suppression up to 20kV / 10kA; ideal for lightning-prone areas in Iraq.
fx-1-25t
Fixed-Mount Shear Beam
25 Ton (25,000 kg)
IP68 Water & Sand Proof
Mining truck weighbridges, heavy quarry dump scales, scrap metal scales.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +75°C
نوع المعدن
17-4 PH Stainless
Rigid top mounting plate resists excessive acceleration and braking forces from haul trucks.

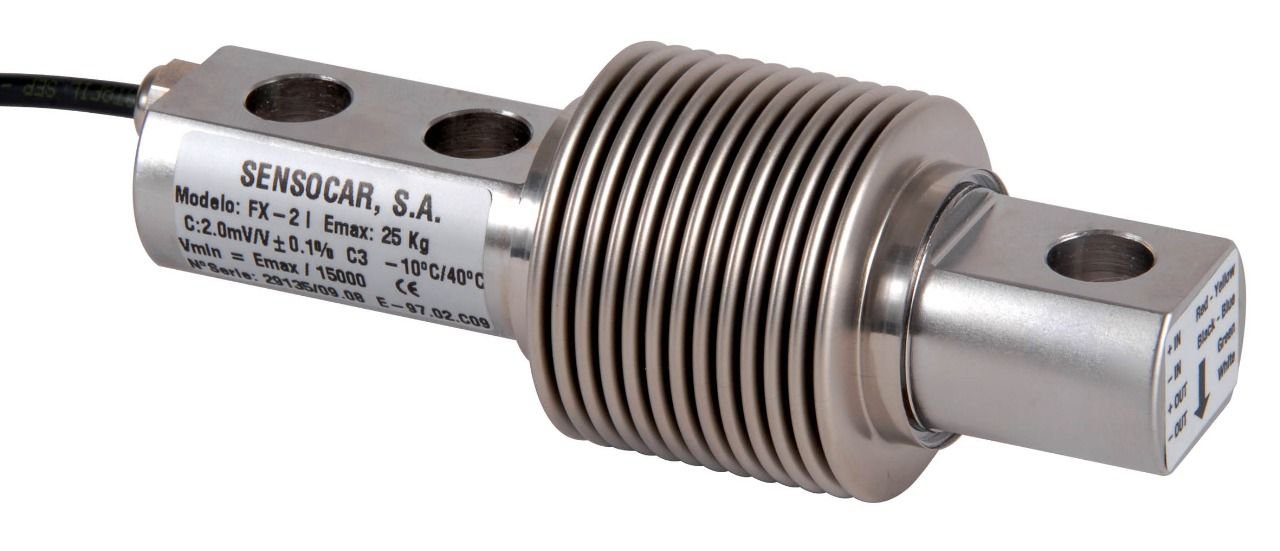

fx-2-25kg
Single-Point Bending Beam
25 kg
IP65 Silicone Sealed
Automated checkweighers, packaging machinery, parts counting scales.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +60°C
نوع المعدن
Nickel Alloy Steel
Maximum platform dimensions up to 350x350mm; rapid settling time.

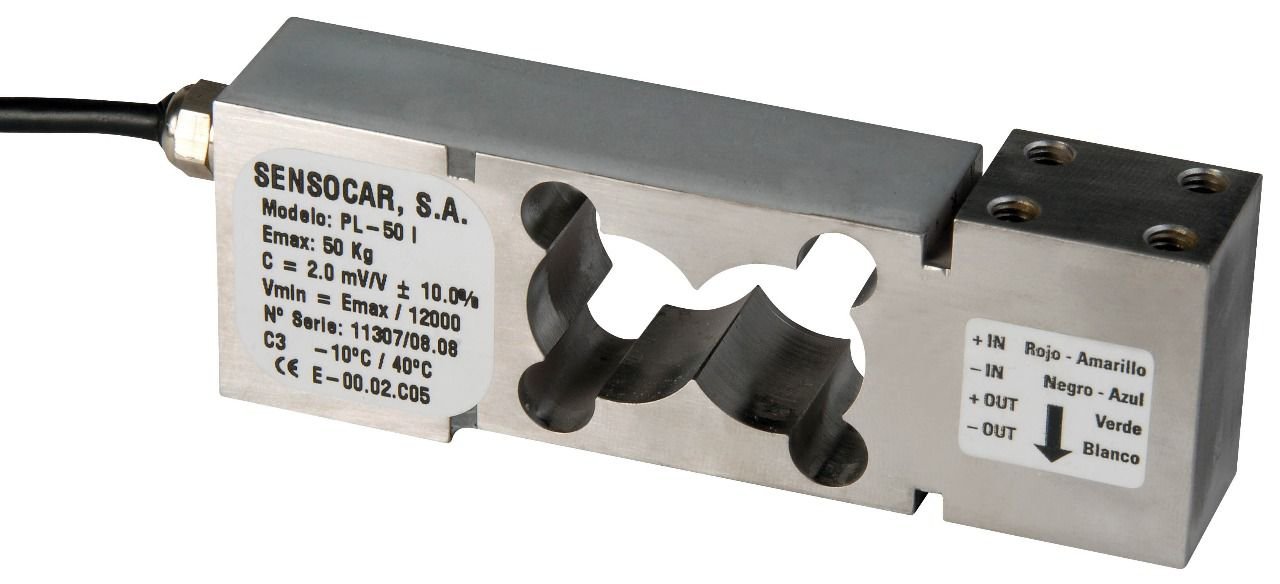

pl-50-50kg
Planar Beam Ultra-Low Profile
50 kg
IP66 Environmental Seal
Ultra-thin medical scales, airport luggage scales, low-clearance parcel conveyor scales.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +65°C
نوع المعدن
17-4 PH Stainless
Height of only 8mm allows construction of floor-level scales without digging pits.

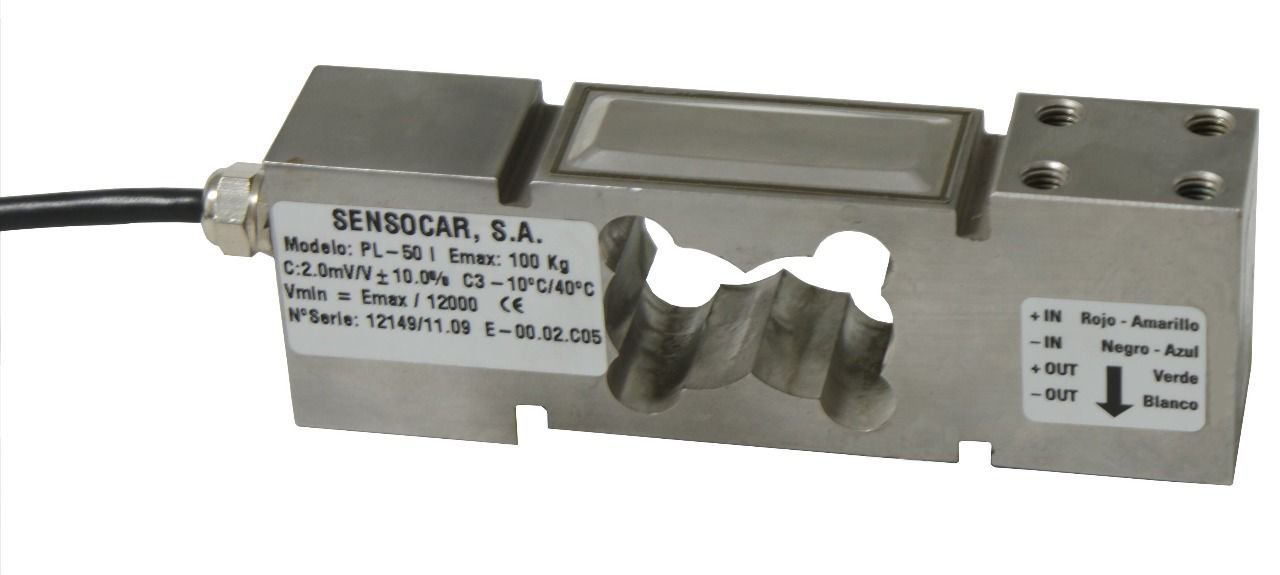

pl-50-100kg
Planar Beam Low Profile
100 kg
IP66 Sealed
Hospital bed weighing, conveyor checkweighers, slim profile platform scales.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +65°C
نوع المعدن
17-4 PH Stainless
High input resistance minimizes power consumption in battery-powered devices.

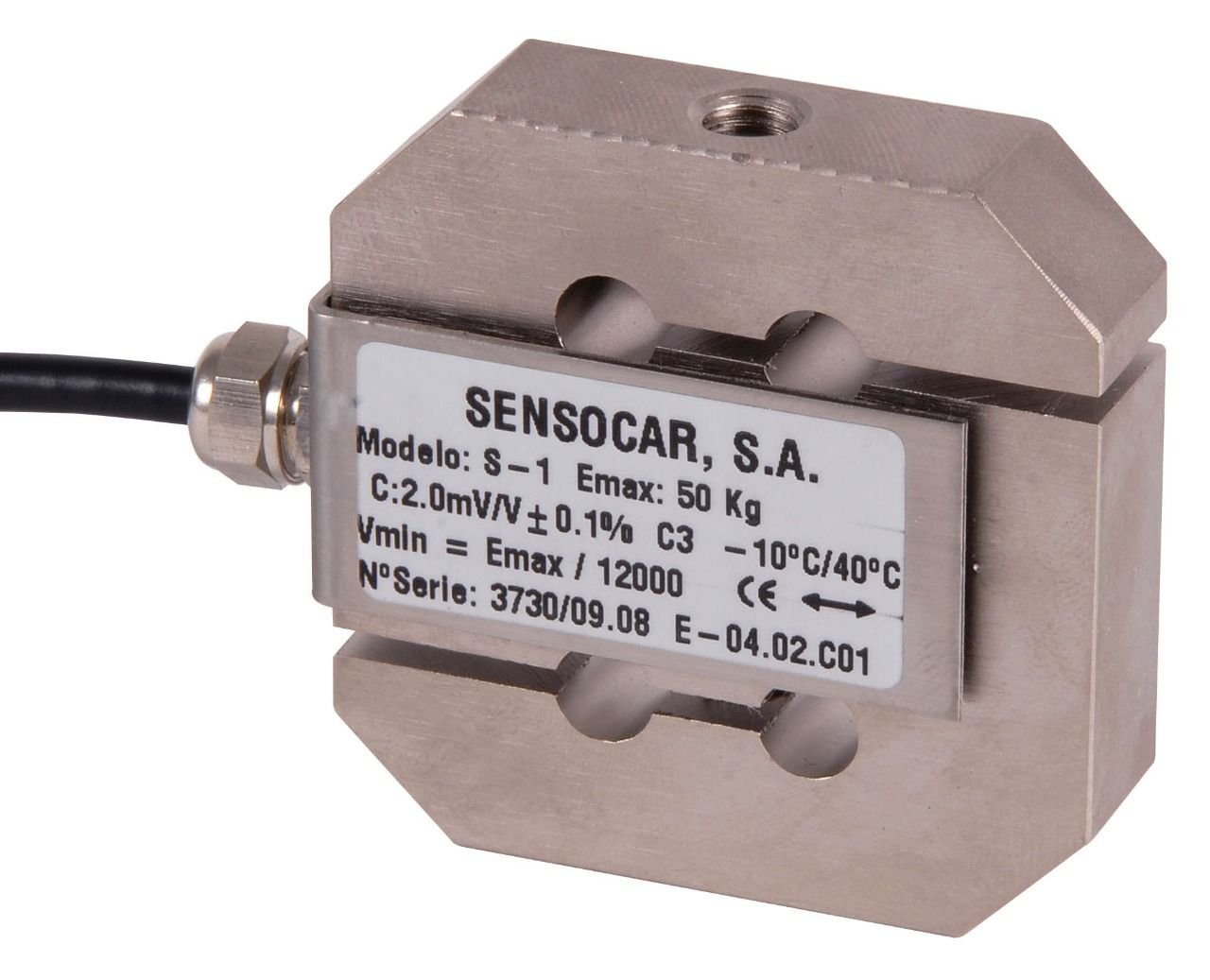

s-1-50kg
S-Type Tension / Compression
50 kg
IP67 Sealed
Mechanical scale-to-electronic conversion, suspended tank hoppers, tensiometers.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-25°C to +70°C
نوع المعدن
17-4 PH Stainless
Bi-directional measurement (tension and compression) with symmetrical linearity.

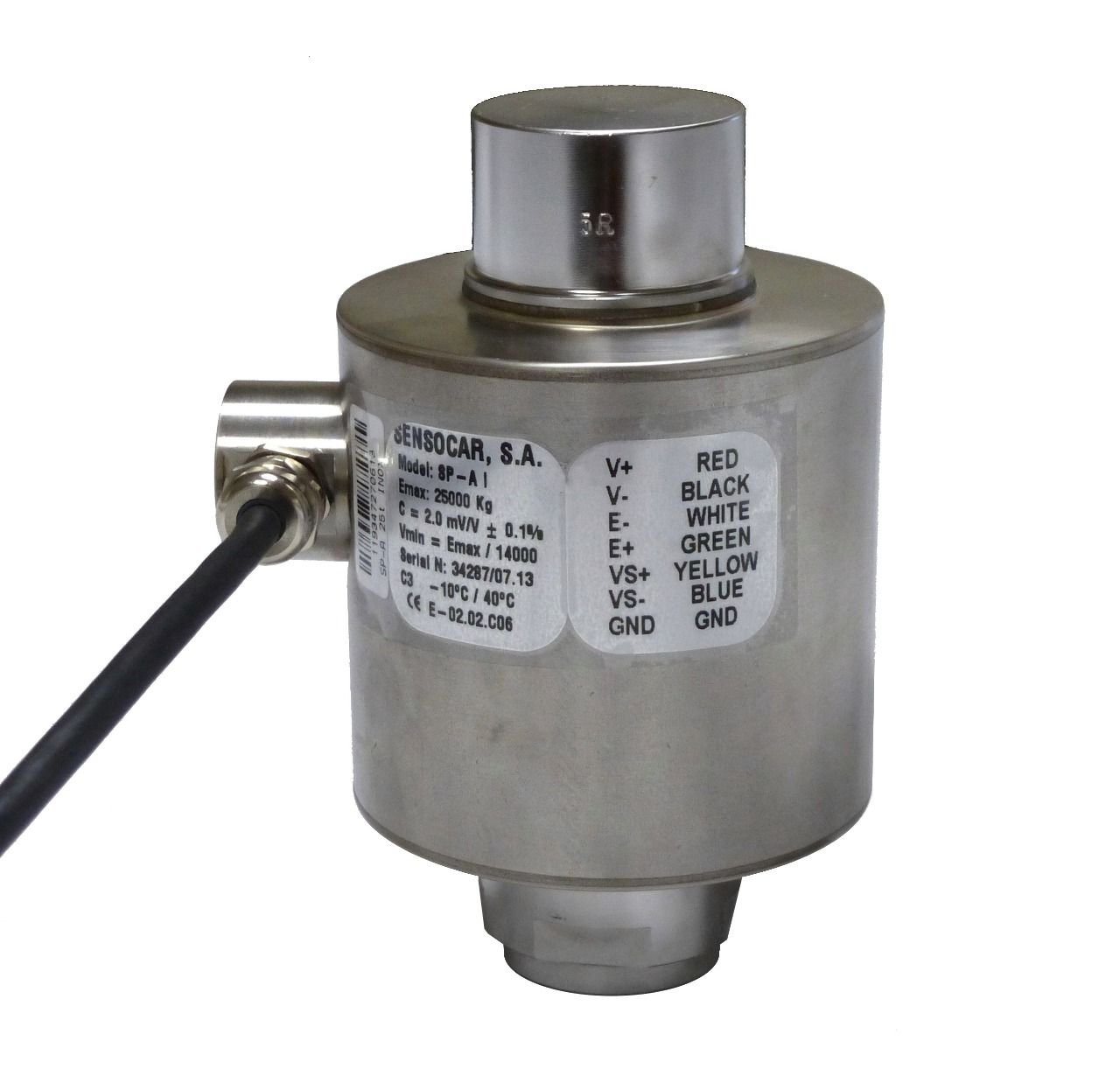

sp-a-25t
Spoke / Pancake Low Profile
25 Ton (25,000 kg)
IP67 / IP68 Sealed
Materials testing machines, hydraulic presses, low-headroom storage vessel weighing.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +75°C
نوع المعدن
Nickel Alloy Steel
Pancake spoke geometry resists extreme lateral side forces up to 100% of rated capacity.

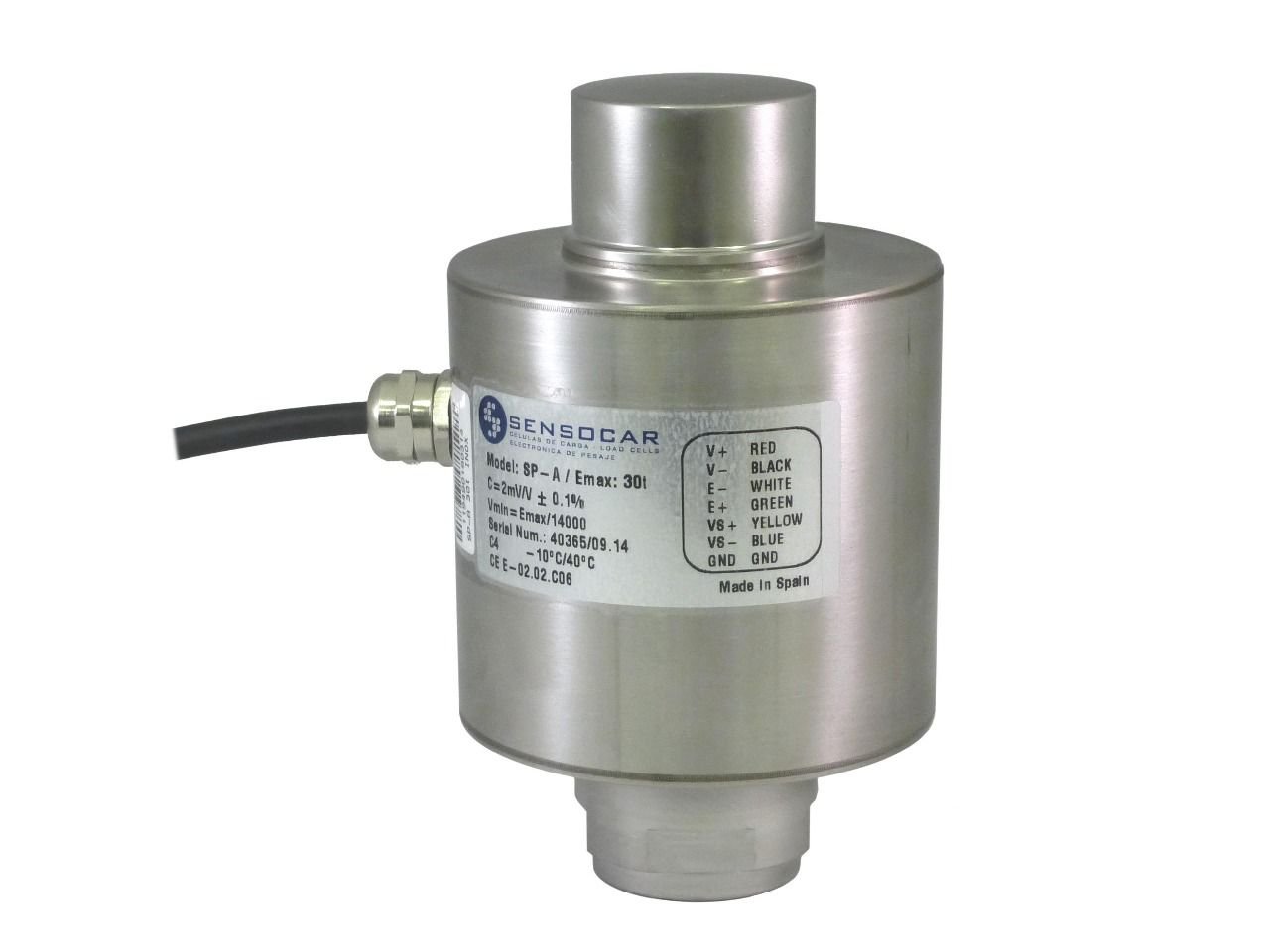

sp-a-30t
Spoke / Pancake Compression
30 Ton (30,000 kg)
IP68 Environmental Hermetic Seal
Heavy vehicle testing frames, multi-ton silo hoppers, hydraulic press force calibration.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +80°C
نوع المعدن
Nickel Alloy Steel
Flange mounting with center tapped hole; highest dynamic fatigue life in class.
sp-d1-15t
Single Shear Beam
15 Ton (15,000 kg)
IP68 Laser Welded
Multi-module truck scales, heavy floor platforms, mixer tanks.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-30°C to +75°C
نوع المعدن
Nickel Alloy Steel
Blind hole loading with self-centering swivel foot ensures reliable load introduction.
sp-d-35kg
Single Point Parallel Beam
35 kg
IP65 Moisture Barrier
Commercial retail scales, conveyor belt checkweighers, industrial batching counters.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +60°C
نوع المعدن
Nickel Alloy Steel
Precision corner adjustment for platforms up to 350x350mm.

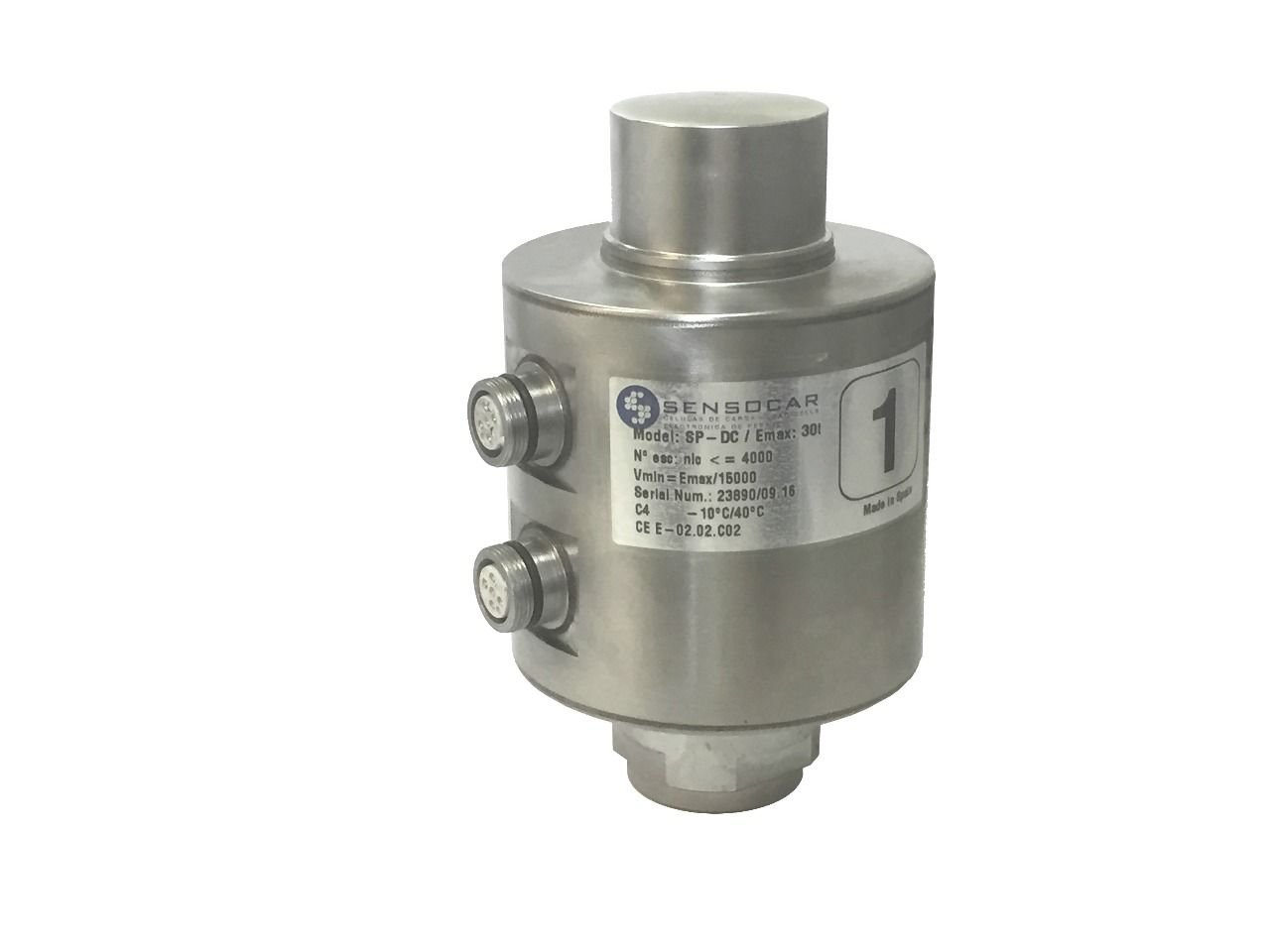

sp-dc-30t
Center-Loaded Double Shear Beam
30 Ton (30,000 kg)
IP68 / IP69K (Hermetically Laser-Welded)
Heavy weighbridges up to 150 tons, steel plant vehicle scales, grain silo weigh platforms.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-40°C to +80°C
نوع المعدن
17-4 PH Stainless
Double-ended center-load geometry provides automatic centering and absorbs aggressive thermal platform expansion.

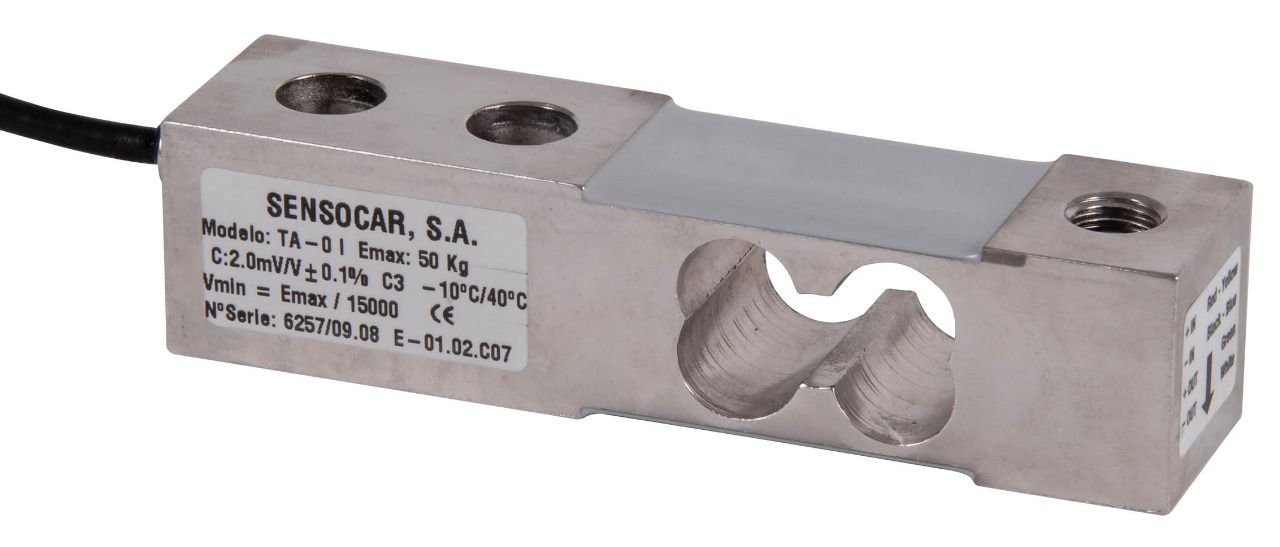

ta-0-50kg
Tank & Vessel Compression Module
50 kg
IP67 Environmental Protection
Chemical reactor tanks, mixing vessels, brewery tanks, pharmaceutical hoppers.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-20°C to +70°C
نوع المعدن
17-4 PH Stainless
Built-in anti-lift-off hardware prevents tank tipping under high winds and agitation.

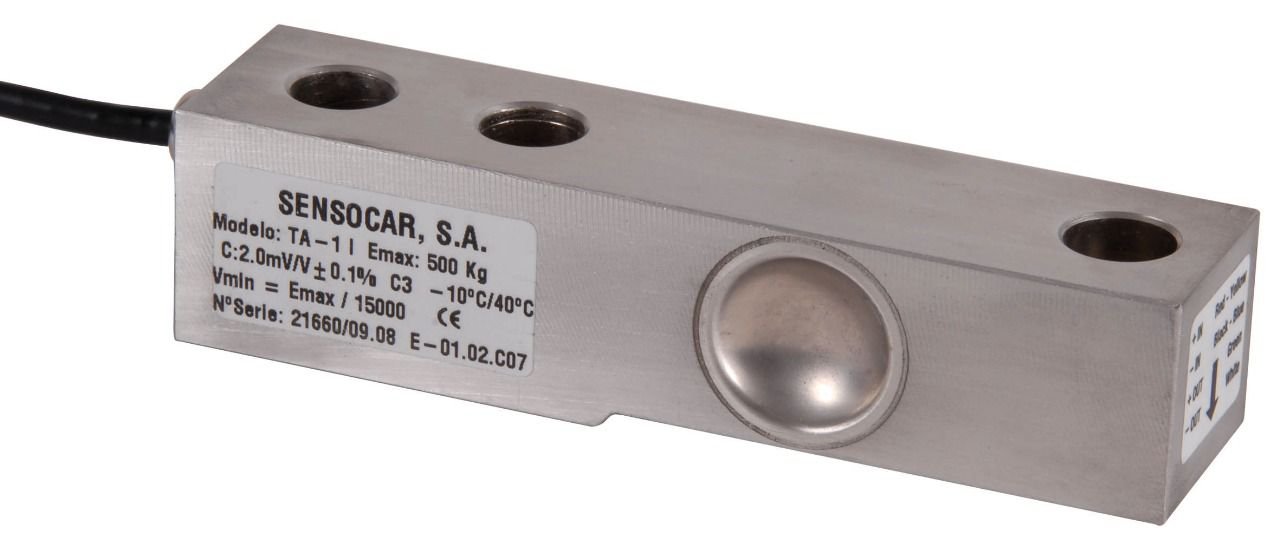

ta-1-500kg
Tank Mount Compression
500 kg
IP67 / IP68 Sealed
Medium-capacity liquid storage tanks, bitumen tanks in asphalt plants, liquid food silos.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-25°C to +70°C
نوع المعدن
17-4 PH Stainless
Accommodates tank thermal expansion and contraction without false weighing errors.

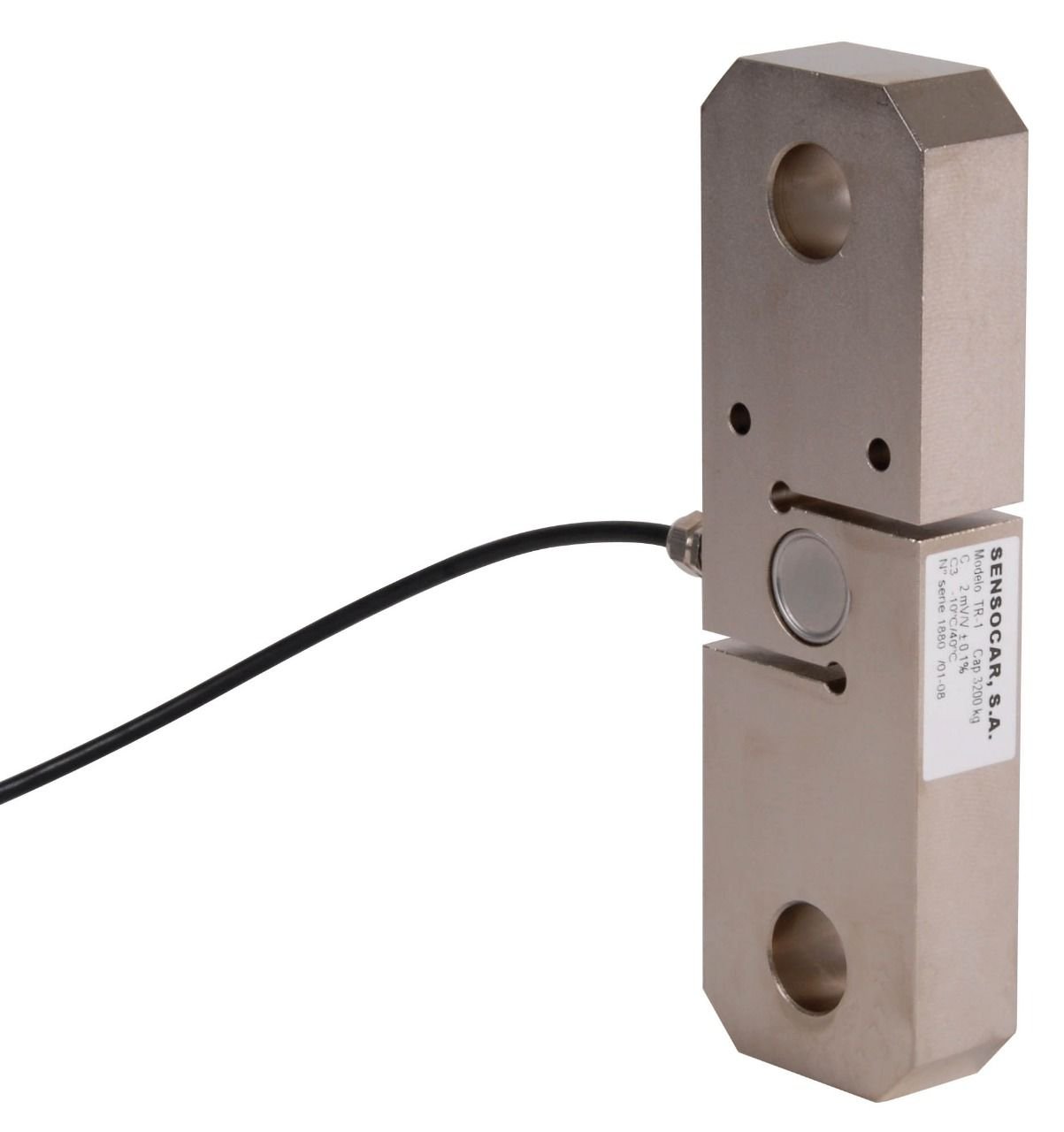

tr-1-3200kg
Tension Link / Track Load Cell
3,200 kg (3.2 Ton)
IP67 Sealed
Overhead slaughterhouse monorail scales, conveyor line weight monitoring, wire rope tensioning.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-25°C to +70°C
نوع المعدن
Nickel Alloy Steel
High dynamic fatigue life with eye-bolt or shackle suspension.

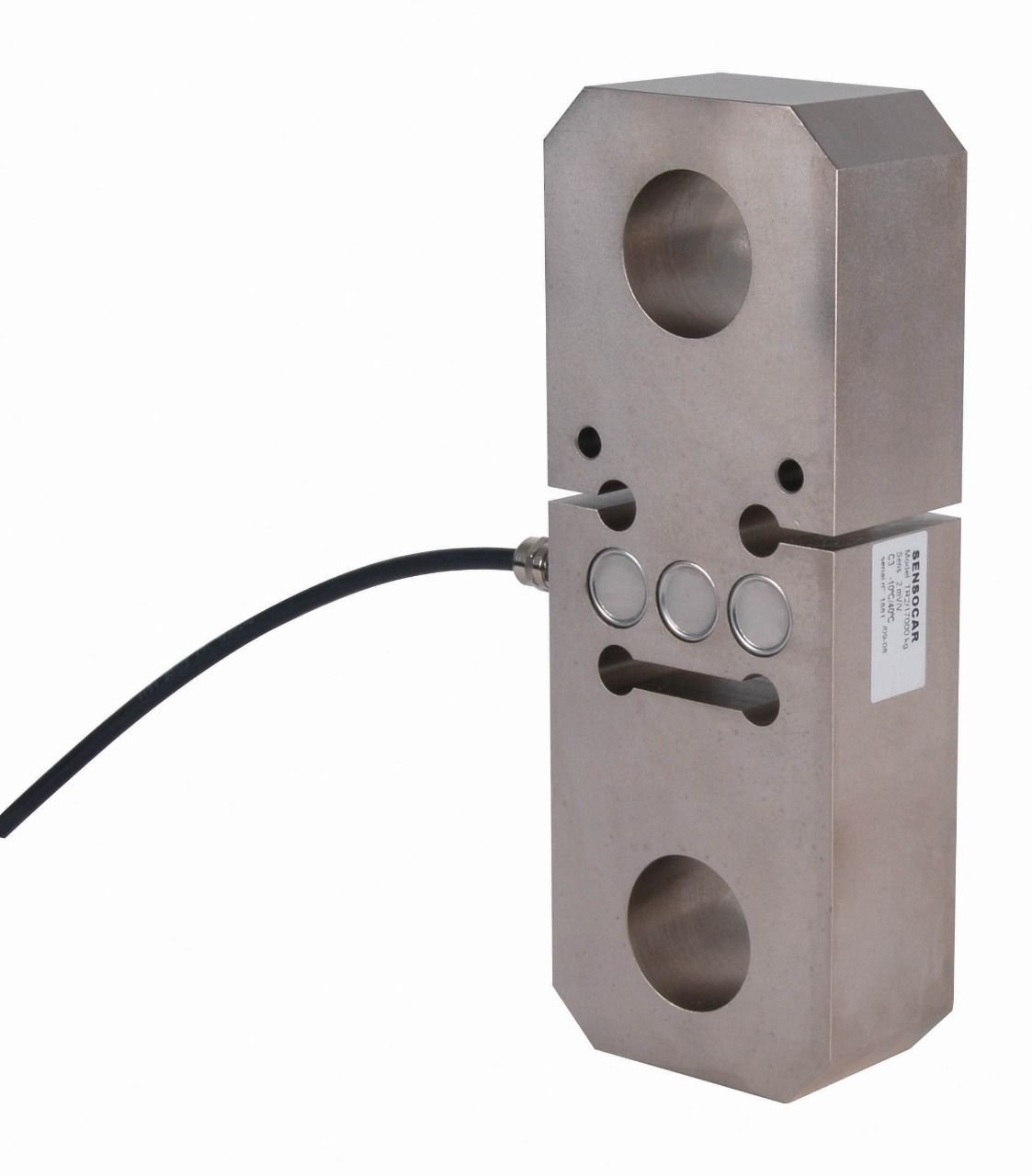

tr2-17t
Heavy Railway Track / Tension Load Cell
17 Ton (17,000 kg)
IP68 Hermetic Protection
Railway wagon weighbridges, track ballast weighing systems, train axle measurement.
فئة الدقة
OIML R60 C3 (3000d)
تحمل الحمولة الزائدة
150% FS Safe
نطاق الحرارة
-35°C to +80°C
نوع المعدن
Nickel Alloy Steel
Engineered to absorb violent dynamic impact spikes from high-speed train rail wheels.

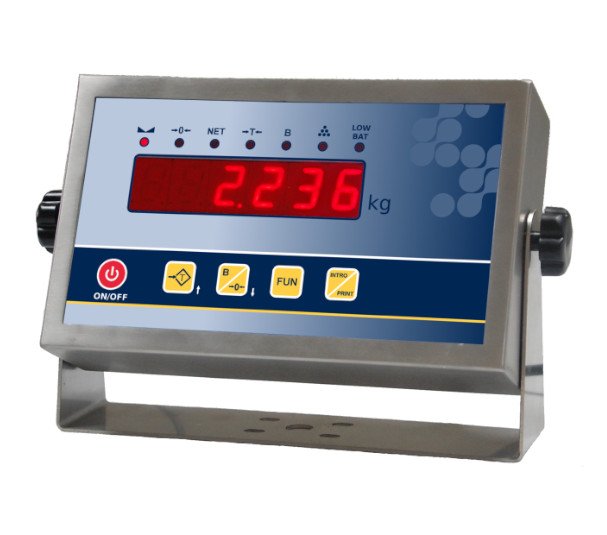

SCA1
Advanced Weighbridge Indicator
Up to 999,999 kg / 100,000 Divisions
IP65 Front Panel Weatherproof
Commercial truck scale weigh stations, grain silos, cement dispatch offices, border customs.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
Electronic Over...
نطاق الحرارة
-10°C to +50°C
نوع المعدن
17-4 PH Stainless
Integrated memory for 1,000 vehicle tare weights; direct Epson/dot-matrix ticket printer driver; multilingual ticket printing (Arabic, Kurdish, English).

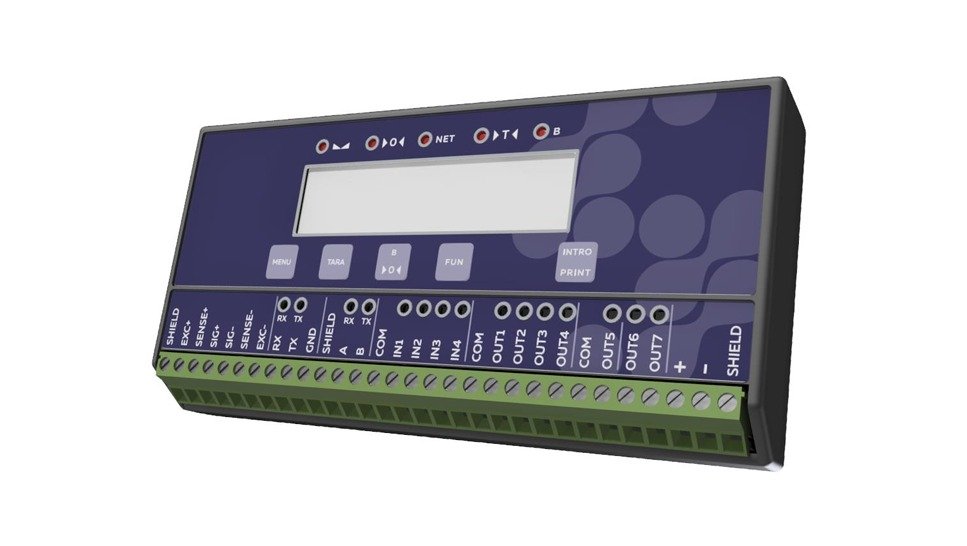

KRONOS
High-Performance Graphic Weighbridge Terminal
Unlimited Display Capacity / Multi-Range
IP65 Rated
High-throughput logistics hubs, automated weighbridges, toll stations, multi-lane truck terminals.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
Audio/Visual Alarm
نطاق الحرارة
-20°C to +55°C
Brilliant blue graphic vacuum fluorescent display readable in any lighting; onboard database holds 10,000 truck records and customer accounts.

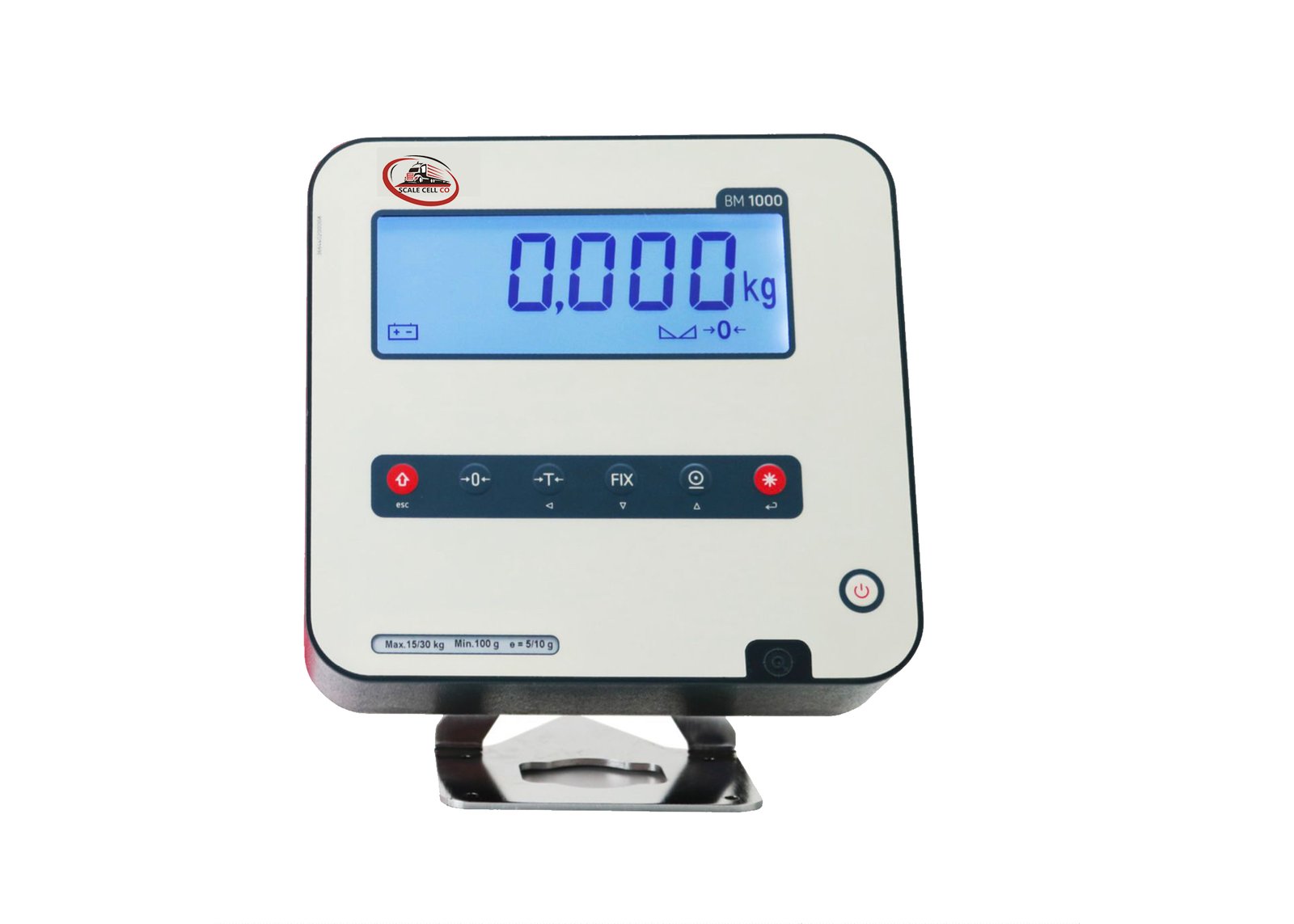

BM1000
Integrated Computer Scale Terminal
Dual Scale Management (Scale 1 & Scale 2)
IP65 Dust and Splash Proof
Cement factories, commercial grain silos in Erbil & Sulaymaniyah, oil distribution depots in Baghdad.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
Tamper Audit Lock
نطاق الحرارة
-10°C to +50°C
Full numeric and alphanumeric keypad allows operator to input driver name, truck license plate, cargo type, and contractor directly without an external PC.
ERTE B12
Multi-Range Weight Indicator
60 Ton to 120 Ton Standard Ranges
IP54 Standard / IP65 Front Panel
Standard commercial weighbridges, platform scales, hopper filling systems.
فئة الدقة
OIML R76 Approved...
تحمل الحمولة الزائدة
Tamper Audit Lock
نطاق الحرارة
-10°C to +40°C
نوع المعدن
Flame-Retardant ABS
High-contrast red 6-digit LED display (25mm height); one-key Zero, Gross, Tare and Print functions.

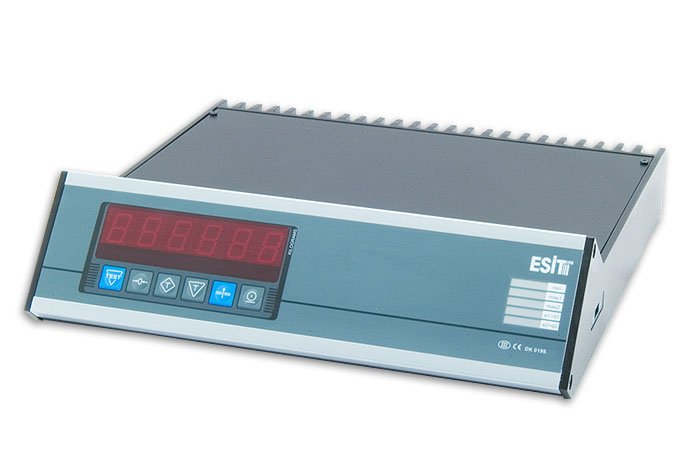

MEDENI
Rugged Weighbridge Indicator
Up to 150 Ton High Capacity
IP65 Sealed Casing
Quarries, asphalt batch plants, scrap steel yards, heavy freight depots.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
Tamper Audit Lock
نطاق الحرارة
-15°C to +55°C
نوع المعدن
Coated Carbon Steel
Engineered for extreme electromagnetic interference environments and generator power fluctuations.

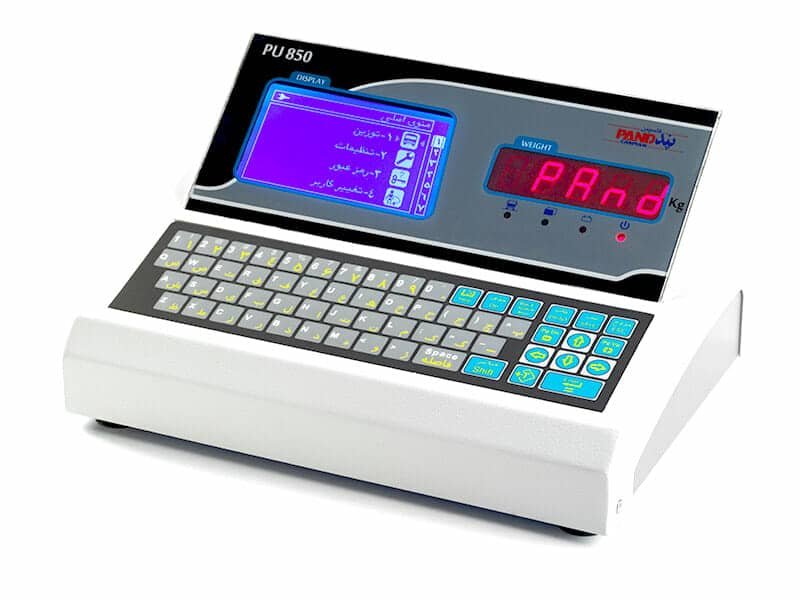

PAND
Digital Weighing Indicator
Standard Industrial Weighbridge Ranges (50t - 100t)
IP65 Environmental Protection
Vehicle scale booths, industrial weigh platforms, livestock scales.
فئة الدقة
OIML R76 Class III
تحمل الحمولة الزائدة
Electronic Zero...
نطاق الحرارة
-10°C to +45°C
نوع المعدن
17-4 PH Stainless
Advanced digital dynamic filter stabilizes reading in seconds even with vibrating vehicle engines.

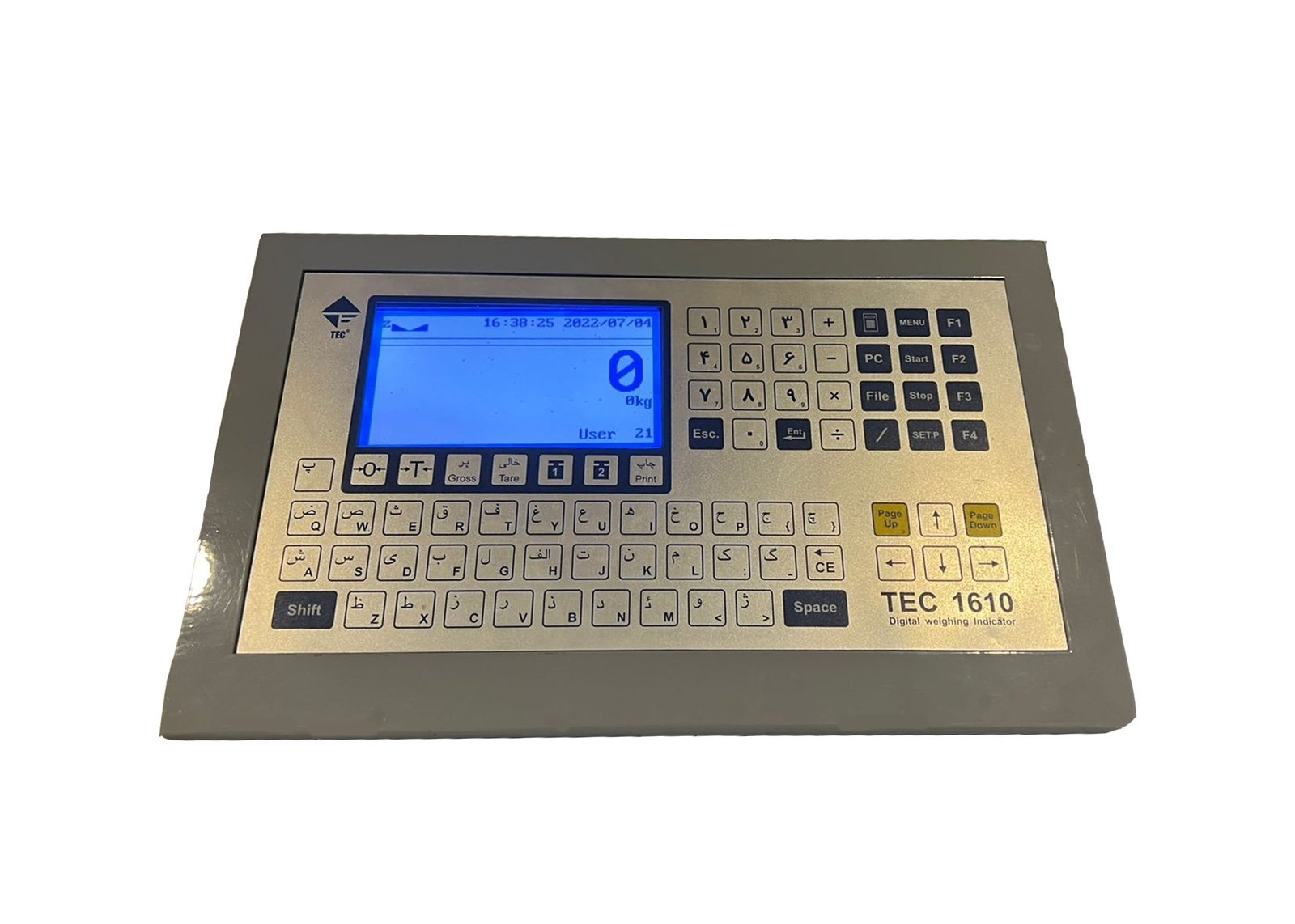

TEC 1610
High-Precision Dual Scale Terminal
Simultaneous Axle Weight & Gross Vehicle Mass (Up to 150t)
IP65 Front Bezel
Slow-motion weigh-in-motion (WIM), dynamic highway enforcement, dual platform truck scales.
فئة الدقة
OIML R76 / R134 W...
تحمل الحمولة الزائدة
Real-Time Wheel...
نطاق الحرارة
-20°C to +60°C
نوع المعدن
Heavy-Duty Indu...
Simultaneously captures individual axle weights, axle group weights, and total gross vehicle mass while vehicle crosses scale at speeds up to 15 km/h.

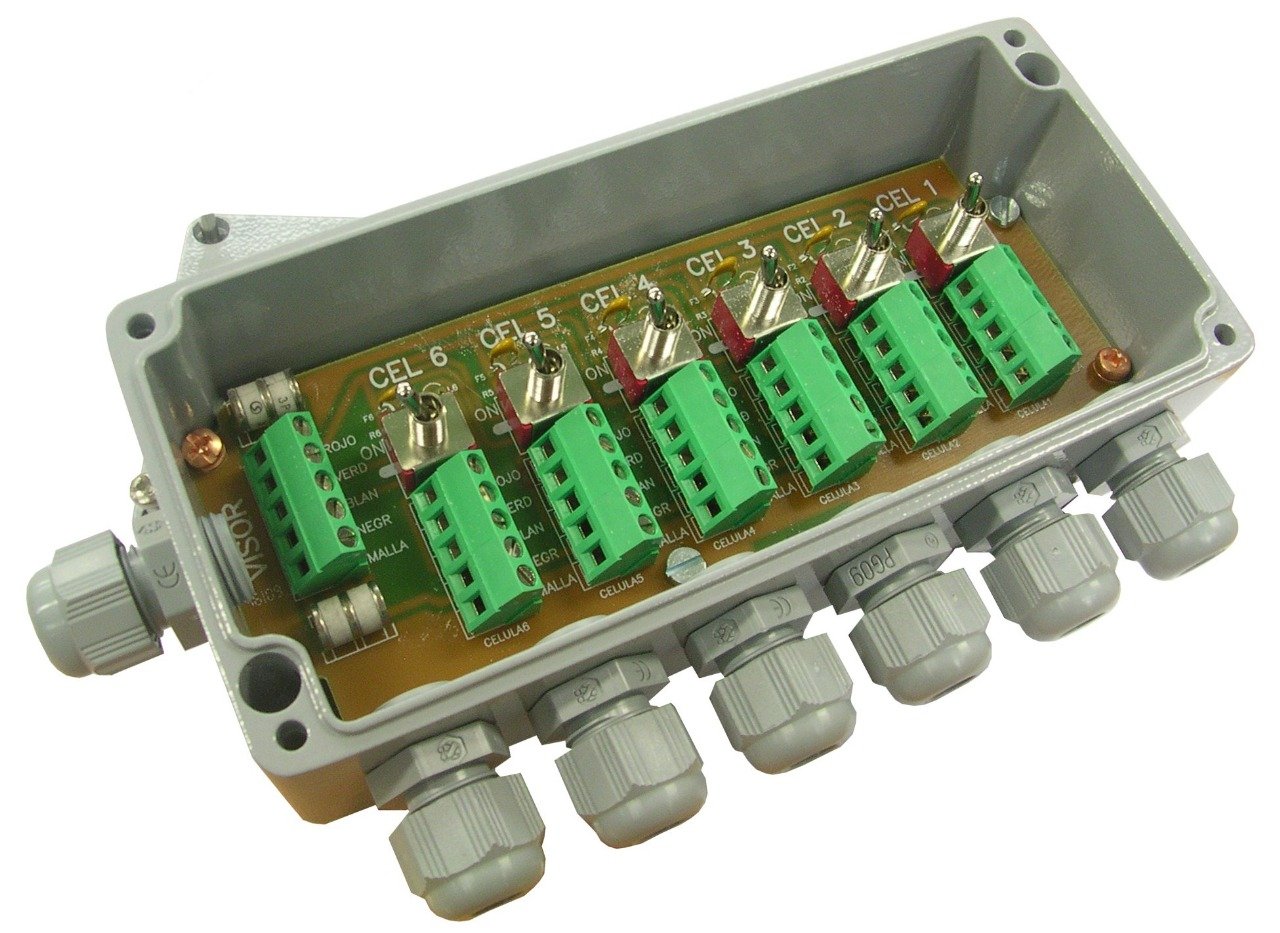

6 LINE
6-Channel Signal Summing Junction Box
Summing for 4, 5, or 6 Load Cells
IP68 Waterproof and Dust-Tight
12m to 16m truck weighbridges, batching plants, heavy tank vessel systems.
فئة الدقة
Independent Multi...
تحمل الحمولة الزائدة
10kA Lightning ...
نطاق الحرارة
-40°C to +85°C
نوع المعدن
17-4 PH Stainless
Precision corner error calibration ensures identical reading whether truck wheel is at front, center, or rear.

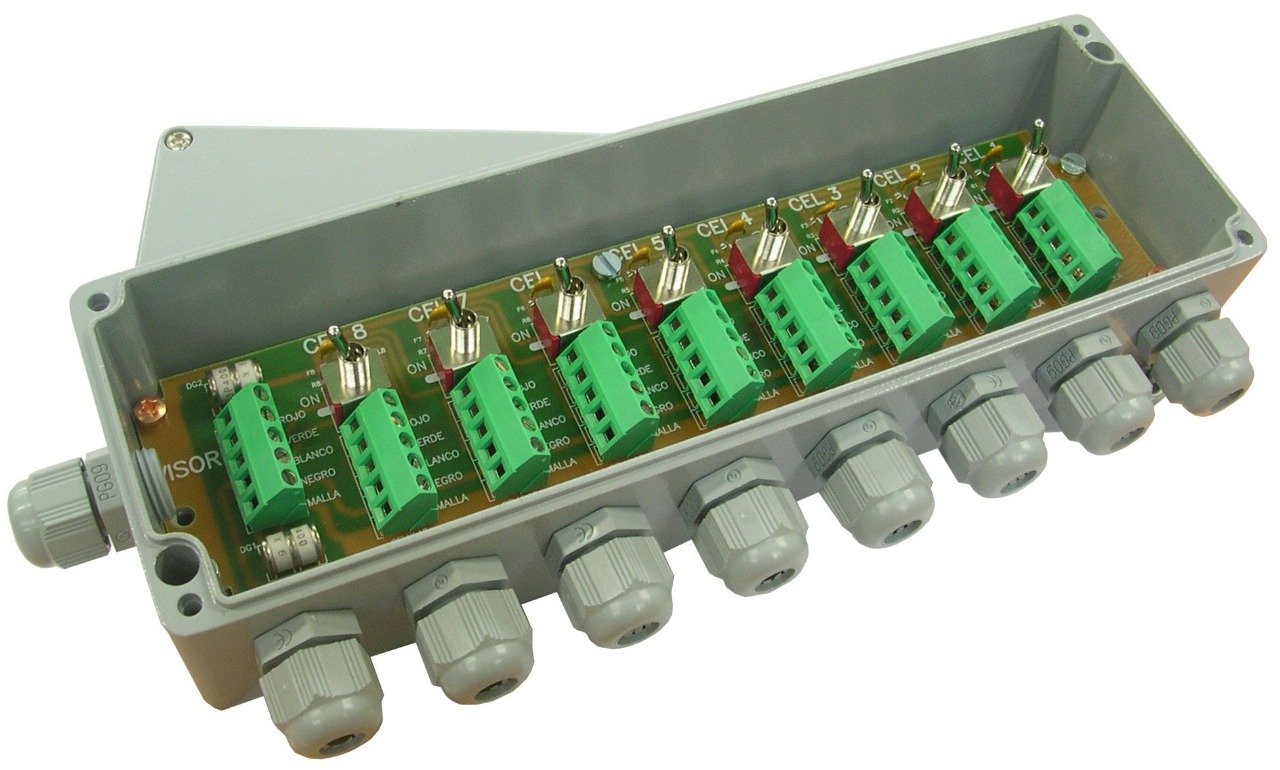

8 LINE
8-Channel Weighbridge Summing Box
Summing for 6, 7, or 8 Load Cells
IP68 Rated (Engineered for Outdoor Pit Installation)
Standard 16m, 18m, and 20m truck scales (8-loadcell configuration) across all Iraqi governorates.
فئة الدقة
Ultra-Precise Cer...
تحمل الحمولة الزائدة
Multi-Stage Hea...
نطاق الحرارة
-40°C to +85°C
نوع المعدن
17-4 PH Stainless
The standard workhorse junction box in Iraqi weighbridge engineering; protects delicate load cells from flash floods and seasonal thunderstorms.

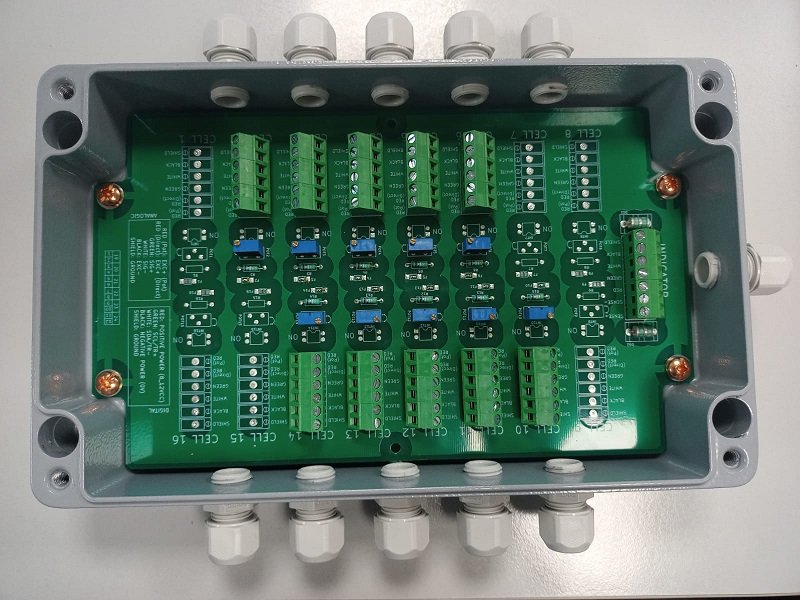

10 LINE
10-Channel Large Weighbridge Junction Box
Summing for 8, 9, or 10 Load Cells
IP68 Hermetic Waterproof Seal
20m, 22m, and 24m multi-axle super-heavy weighbridges (100t–150t), railway weigh stations.
فئة الدقة
Independent Chann...
تحمل الحمولة الزائدة
Full Multi-Stag...
نطاق الحرارة
-40°C to +85°C
نوع المعدن
17-4 PH Stainless
Spacious interior permits easy wiring and probe testing during annual COSQC verification visits.
RD-300 3-Inch LED Display
Compact Remote LED Display
6 Digits (Digit Height: 75mm / 3 Inch)
IP65 Rated Weather-Sealed Enclosure
Weighbridge guard booth, forklift loading bays, indoor factory dispatch areas.
فئة الدقة
Synchronized Disp...
تحمل الحمولة الزائدة
Mains Surge Sup...
نطاق الحرارة
-20°C to +65°C
Compact footprint with brilliant visibility; compatible with SCA1, KRONOS, BM1000, and all major indicator brands.
RD-Graphic Matrix Display
Full Matrix Alphanumeric Driver Messaging Display
Multi-Line Text, Numbers, Arabic/English Characters, and Arrow Graphics
IP66 Rated for Severe Outdoor Sand & Rain Conditions
Unmanned automated weighbridges, highway toll plazas, border customs checkpoints in Iraq.
فئة الدقة
High-Definition D...
تحمل الحمولة الزائدة
Internal Power ...
نطاق الحرارة
-30°C to +75°C
نوع المعدن
Coated Carbon Steel
Displays live vehicle weight, captured license plate number, driver instructions ("MOVE FORWARD", "STOP", "WEIGHT ACCEPTED") in English, Arabic, and Kurdish.

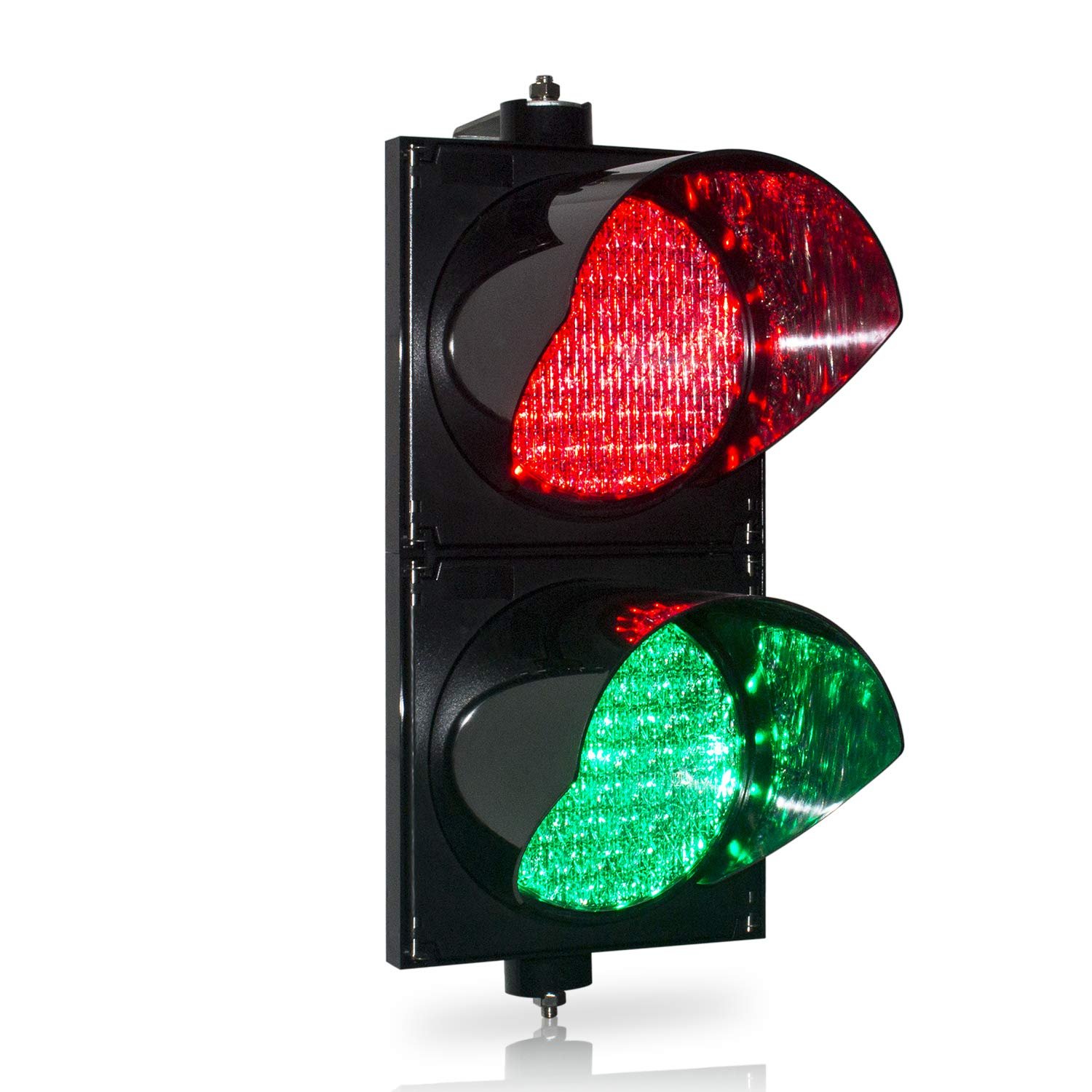

Traffic Light
Industrial Traffic Signal Light
Dual Signal: Red (Stop) / Green (Proceed)
IP65 Weatherproof & Sand-Resistant
Weighbridge entry and exit traffic control, warehouse door authorization, toll gates.
فئة الدقة
Instant Relay Swi...
تحمل الحمولة الزائدة
Overvoltage and...
نطاق الحرارة
-35°C to +75°C
نوع المعدن
UV-Stabilized P...
Directly driven by Bwer Weighbridge Automation Software; automatically switches to Green once stable weight is captured and ticket is printed.
Automatic Barrier Gate
High-Duty Cycle Automated Barrier Gate
100% Continuous Duty Cycle (Up to 5,000 Cycles/Day)
IP55 Weatherproof Outdoor Mechanism
Weighbridge perimeter access, commercial toll lanes, refinery checkpoint gates.
فئة الدقة
Rapid Opening/Clo...
تحمل الحمولة الزائدة
Torque Sensing ...
نطاق الحرارة
-30°C to +70°C
نوع المعدن
Coated Carbon Steel
High-speed brushless motor with zero maintenance gearbox; articulated or straight boom arm with red reflective warning stripes and LED lighting.
