16 PLATFORMS CATALOG ACTIVE COSQC IRAQ COMPLIANT OIML R76 CLASS III
CERTIFIED INDUSTRIAL TRUCK SCALES (60T - 200T)

Heavy-Duty Weighbridge Platforms Engineered for Iraq & Middle East

Explore 16 precision-engineered weighbridge configurations. Heavy European IPE 450/500 and HEB 300 structural steel, laser-welded IP68/IP69K hermetic load cells, and extreme thermal resistance (-40°C to +80°C) tailored for Baghdad logistics, Basra oil terminals, Kurdistan cement complexes, and Iraqi border customs.

Deflection < 1/1200 IP68/IP69K Submersible Cells Low-Ohm Lightning Earth Loop Turnkey Civil Foundation Supply
BWER-SMP-100 Surface-Mounted / Pitless
Surface-Mounted (Pitless) Heavy-Duty Steel Weighbridge 60 - 150 Ton COSQC & OIML R76

Surface-Mounted (Pitless) Heavy-Duty Steel Weighbridge

The Gold Standard Truck Scale for Iraq Industrial Infrastructure

Spans 8m – 24m
Girders IPE 450 / HEB 300
Deck 10mm - 14mm Steel
Sensors 6–12 Cells
Deflection < 1/1200 Rigidity
Overload 150% FS Safe
Industrial manufacturing complexes, commercial grain elevators in Erbil & Sulaymaniyah, logistics freight hubs in Baghdad, sand & gravel quarries.
BWER-PMF-80 Pit & Semi-Pit Systems
Pit-Mounted In-Ground Flush Weighbridge 60 - 120 Ton COSQC & OIML R76

Pit-Mounted In-Ground Flush Weighbridge

Zero-Footprint Flush Scale for Constrained Commercial Sites

Spans 12m – 20m
Girders Continuous I-Beam
Deck 10mm - 12mm Steel
Sensors 6 or 8 Cells
Deflection < 1/1100 Rigidity
Overload 150% FS Safe
Urban scrap yards, city distribution warehouses, ports with congested cross-traffic, and sites where trucks must make 90-degree turns directly onto the scale.
BWER-SPF-90 Pit & Semi-Pit Systems
Semi-Pit Low-Profile Modular Weighbridge 60 - 100 Ton COSQC & OIML R76

Semi-Pit Low-Profile Modular Weighbridge

Reduced Civil Costs with Integrated Anti-Derailment Guide Rails

Spans 14m – 18m
Girders Steel Box Girder
Deck 10mm Steel
Sensors 6 or 8 Cells
Deflection < 1/1200 Rigidity
Overload 150% FS Safe
High water-table terrain in southern Iraq (Basra, Nasiriyah) where deep pits cause chronic water ingress, but surface ramps are prohibited by limited driveway lengths.
BWER-CPCD-120 Concrete & Hybrid Decks
Cast-in-Place Heavy Reinforced Concrete Deck Weighbridge 80 - 150 Ton Extreme Heavy Duty COSQC & OIML R76

Cast-in-Place Heavy Reinforced Concrete Deck Weighbridge

Unrivaled 30+ Year Lifespan for Corrosive & Heavy Chemical Sites

Spans 16m – 24m
Girders Channel & Rebar Grid
Deck 220mm - 250mm Concrete
Sensors 8–40 Cells
Deflection < 1/1500 Rigidity
Overload 175% FS Safe
Bazian cement plant complexes, Karbala iron & steel foundries, Basra crude oil & gas refineries, marine shipping berths.
BWER-PCMC-100 Concrete & Hybrid Decks
Pre-Cast Modular Concrete Transportable Weighbridge 60 - 100 Ton COSQC & OIML R76

Pre-Cast Modular Concrete Transportable Weighbridge

Factory Cured High-Strength Concrete Modules for Rapid Commissioning

Spans 12m – 18m
Girders Post-Tensioned Rim
Deck 200mm Concrete
Sensors 6 or 8 Cells
Deflection < 1/1400 Rigidity
Overload 150% FS Safe
Infrastructure road contractors, interim oil exploration basecamps, seasonal grain handling cooperatives.
BWER-SCCH-120 Concrete & Hybrid Decks
Steel-Concrete Composite Hybrid Deck Weighbridge 80 - 120 Ton COSQC & OIML R76

Steel-Concrete Composite Hybrid Deck Weighbridge

Optimum Strength-to-Weight Balance Fusing Steel Framing with Concrete Infill

Spans 16m – 20m
Girders Flange & Shear Studs
Deck 180mm Concrete
Sensors 8x IP69K Cells
Deflection < 1/1350 Rigidity
Overload 160% FS Safe
Heavy truck dispatch yards, aggregate quarries, regional logistics centers in Kirkuk and Anbar.
BWER-MOB-60 Surface-Mounted / Pitless
Mobile Relocatable Steel Axle Weighbridge 40 - 80 Ton COSQC & OIML R76

Mobile Relocatable Steel Axle Weighbridge

Complete Turnkey Truck Scale Assembled and Relocated in One Day

Spans 8m – 16m
Girders Rigid Skid Frame
Deck 12mm Steel
Sensors 4 or 6 Cells
Deflection < 1/1000 Rigidity
Overload 150% FS Safe
Road construction and paving projects, temporary military logistics, crop harvesting sites, mining exploration rigs.
BWER-HSWIM-150 Weigh-in-Motion (WIM)
High-Speed Highway Weigh-in-Motion (WIM) Station Axle Load: 30 Ton | Total Gross Vehicle Mass: 150 Ton COSQC & OIML R76

High-Speed Highway Weigh-in-Motion (WIM) Station

Multi-Lane Highway Overload Enforcement at Speeds up to 130 km/h

Spans Full Highway Lane Integration
Girders Flush Road Grout
Deck Quartz Sensor Bars
Sensors Quartz Array Lines
Deflection Zero Deflection
Overload Military Safe
Ministry of Transport highway checkpoints, Baghdad-Basra Highway 1, international customs border crossings (Ibrahim Khalil, Safwan, Trebil).

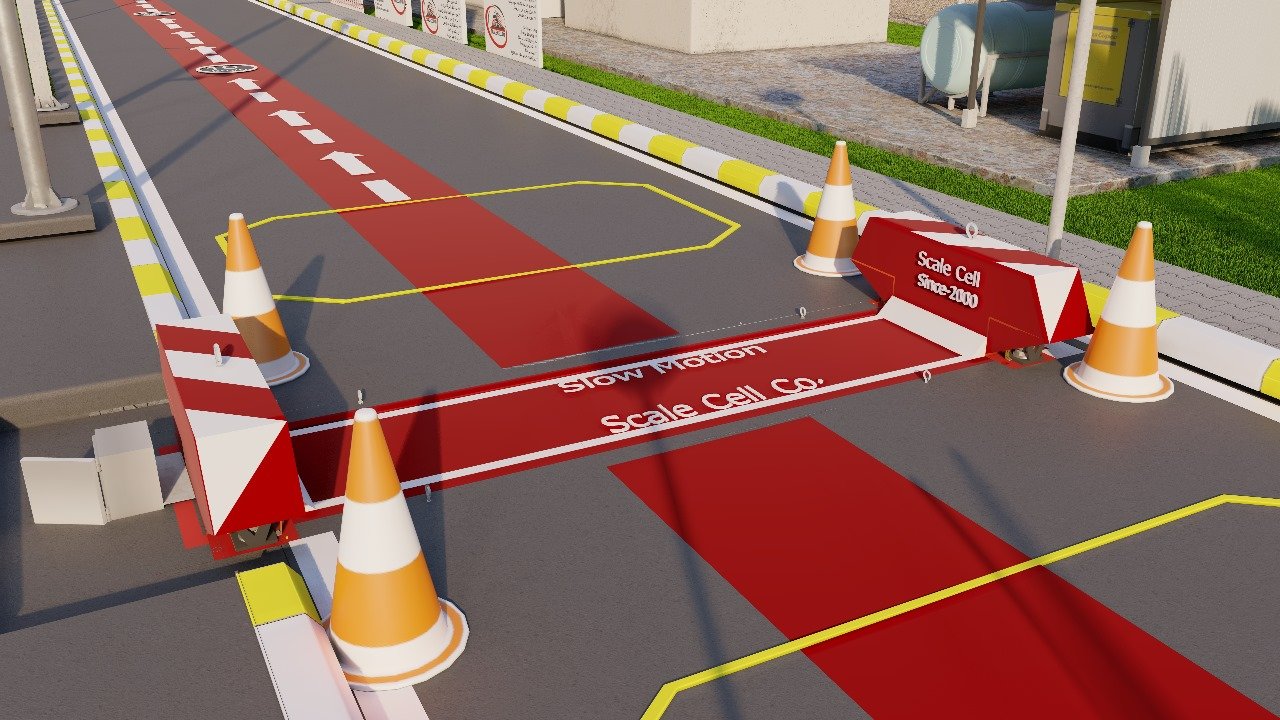

BWER-LSWIM-60 Weigh-in-Motion (WIM)
Low-Speed Dynamic Axle Weighbridge (LS-WIM) 30 Ton per Axle | 100 Ton Total Gross Mass COSQC & OIML R76

Low-Speed Dynamic Axle Weighbridge (LS-WIM)

High-Throughput Axle-by-Axle Weighing for Freight Terminals

Spans Platform: 3.2m x 0.9m
Girders Box Frame In-Pit
Deck 16mm Steel
Sensors 4x IP69K Cells
Deflection < 1/2000 Rigidity
Overload 200% FS Safe
Container freight stations, busy logistics cross-docks, solid waste disposal facilities, commercial parcel depots.

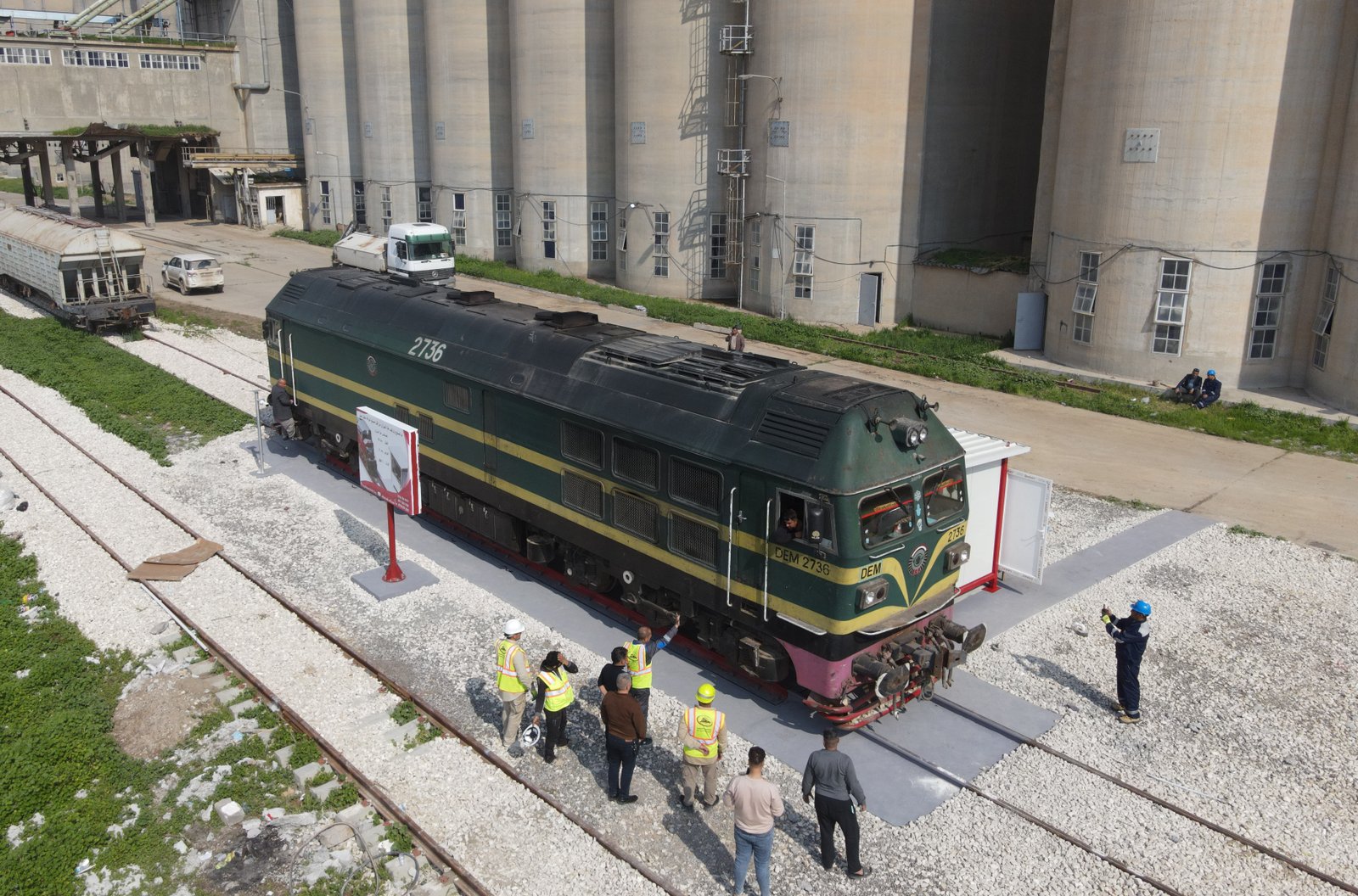

BWER-SRW-160 Railway Weighbridges
Static Railway Wagon Freight Weighbridge 100 - 200 Ton Gross Rail Car Weight COSQC & OIML R76

Static Railway Wagon Freight Weighbridge

Official Trade Certified Rail Scale for Iraqi Republic Railways (IRR)

Spans 14m – 24m
Girders HEB 600 Rail Beams
Deck Track Grillage
Sensors 8–30 Cells
Deflection < 1/1500 Rigidity
Overload 200% FS Safe
Crude oil rail loading terminals in Basra, grain transfer rail sidings in Kirkuk & Erbil, sulfur export lines.
BWER-DMR-200 Railway Weighbridges
Coupled-in-Motion Dynamic Rail Weighbridge (CIM) Axle Load: 35 Ton | Total Train Weight: Unlimited COSQC & OIML R76

Coupled-in-Motion Dynamic Rail Weighbridge (CIM)

Weigh Entire Freight Trains in Motion Without Decoupling Wagons

Spans Bogie / Axle Weigh Pad Section
Girders Sub-Plate Bedding
Deck Instrumented Ra...
Sensors 4 or 8 Cells
Deflection Zero Deflection
Overload Locomotive Safe
Bulk mineral transport, refinery tanker train loading, grain train terminals operating non-stop 24/7.
BWER-SHM-200 Heavy Mining & ATEX
Super-Heavy Mining & Haul Truck Weighbridge (Up to 250t) 150 - 250 Ton Super Heavy-Duty COSQC & OIML R76

Super-Heavy Mining & Haul Truck Weighbridge (Up to 250t)

Engineered for Caterpillar 777, Komatsu, and BelAZ Off-Road Mining Trucks

Spans 18m – 30m
Girders HEB 800/1000 Extra
Deck 16mm - 20mm Steel
Sensors 10–50 Cells
Deflection < 1/1600 Rigidity
Overload 200% FS Safe
Cement quarry operations, open-cast gypsum mines, heavy dam construction sites, large steel ingot transfer facilities.
BWER-MDST-120 Surface-Mounted / Pitless
Multi-Deck Split Tandem Weighbridge (3 Independent Platforms) 120 - 150 Ton Combined (40t Steer + 50t Drive + 60t Trailer) COSQC & OIML R76

Multi-Deck Split Tandem Weighbridge (3 Independent Platforms)

Simultaneous Instant Weighing of Steer, Drive, and Trailer Axle Groups

Spans Deck 1: 4m | Deck 2: 7m | Deck 3: 11m
Girders 3x Split Girders
Deck 12mm Steel
Sensors 12 or 4 Cells
Deflection < 1/1300 Rigidity
Overload 150% FS Safe
Iraqi legal axle load compliance, multi-trailer long combination vehicles (LCVs), tanker trucks, customs border terminals.
BWER-ATEX-100 Heavy Mining & ATEX
ATEX Explosion-Proof Certified Truck Scale (Zone 1 & Zone 2) 80 - 120 Ton COSQC & OIML R76

ATEX Explosion-Proof Certified Truck Scale (Zone 1 & Zone 2)

Intrinsically Safe Scale System for Oil Refineries & Petrochemical Terminals

Spans 16m – 24m
Girders IPE / HEB + ATEX
Deck 12mm Steel
Sensors 8x IP69K Cells
Deflection < 1/1200 Rigidity
Overload 150% FS Safe
Basra oil refineries (South Gas, Shuaiba), Kirkuk oil loading racks, LPG gas cylinder filling depots, fuel tank terminals.
BWER-AGRI-90 Surface-Mounted / Pitless
Agricultural & Grain Silo Heavy Weighbridge 60 - 100 Ton COSQC & OIML R76

Agricultural & Grain Silo Heavy Weighbridge

Harvest-Engineered Scale with Integrated Debris Grates & High-Speed Ticket Flow

Spans 16m – 20m
Girders Self-Cleaning Chassis
Deck 10mm - 12mm Steel
Sensors 6–68 Cells
Deflection < 1/1200 Rigidity
Overload 150% FS Safe
Grain silos in Erbil, Sulaymaniyah, Mosul, and Wasit, wheat & barley collection centers, feed mills, fertilizer storage depots.
BWER-CONT-50 Heavy Mining & ATEX
Twist-Lock ISO Shipping Container Weighbridge (SOLAS VGM) 50 - 60 Ton (Verified Gross Mass VGM) COSQC & OIML R76

Twist-Lock ISO Shipping Container Weighbridge (SOLAS VGM)

Direct Corner-Casting Weighing for 20ft, 40ft, and 45ft Ocean Containers

Spans Adjustable 20ft / 40ft / 45ft Container Dimensions
Girders ISO Twist-Lock Box
Deck 4x ISO Twist Locks
Sensors 4–20 Cells
Deflection < 1/1500 Rigidity
Overload 150% FS Safe
Umm Qasr Port container terminals, Khor Al-Zubair port, bonded dry customs ports, multimodal rail-to-truck container transfer depots.
ARCHITECTURAL COMPARISON & CIVIL FEASIBILITY

Structural Selection Matrix: Which Configuration Fits Your Site?

Comprehensive structural evaluation comparing foundation excavation depths, high water-table resilience in southern Iraq, spatial maneuvering footprints, axle deflection ratios, and lifecycle durability under severe Middle East climatic extremes.

Filter by Iraqi Operational Site Scenario: SHOWING ALL 6 ARCHITECTURAL DESIGNS
ABOVE-GRADE SLAB LOWEST CIVIL COST

Surface-Mounted (Pitless)

The platform is elevated 400mm - 450mm above ground level on a reinforced continuous concrete slab. Rainwater and soil wash away freely underneath.

Excavation Depth: 0m (Flat Raft Slab)
Flood Resilience: 100% Gravity Safe
Ramp Requirement: 4.0m – 5.5m Incline
Deflection Ratio: < 1/1200 Span
Key Iraq Sites: Erbil grain elevators, Sulaymaniyah cement transit hubs, Basra logistics compounds with high groundwater.
View BWER-SMP-100 Blueprint
FLUSH TRENCH DECK ZERO FOOTPRINT

In-Ground Flush Pit Scale

The weighing deck sits perfectly flush with the surrounding roadway. Trucks can turn 90° or cross sideways without ramps. Ideal for tight industrial yards.

Excavation Depth: 1.4m – 1.6m Vault
Flood Resilience: Sump Pump Req
Ramp Requirement: 0m (Zero Footprint)
Deflection Ratio: < 1/1100 Span
Key Iraq Sites: Baghdad Industrial Zone warehouses, congested logistics depots, factory gate choke points.
View BWER-PMF-80 Blueprint
SHALLOW TRENCH SAFE DRAINAGE

Semi-Pit Low Profile

Excavation is limited to just 400mm - 500mm depth. Avoids deep groundwater tables while requiring minimal 1.5m ramps.

Excavation Depth: 400mm – 500mm Shallow
Flood Resilience: High Safety
Ramp Requirement: 1.5m – 2.0m Mini
Deflection Ratio: < 1/1200 Span
Key Iraq Sites: Basra petroleum compounds, Nasiriyah oil logistics, Maysan border depots.
View BWER-SPF-90 Blueprint
REINFORCED CONCRETE 40+ YR LIFECYCLE

Reinforced Concrete Deck

Heavy steel perimeter channel filled with cast-in-place C40/50 rebar-reinforced concrete. Immune to surface rust, chemical acids, and salt spray.

Excavation Depth: Surface or Shallow
Chemical Resilience: 100% Acid Proof
Deck Thickness: 200mm – 250mm C40
Deflection Ratio: < 1/1500 (Negligible)
Key Iraq Sites: Bazian cement complexes, Umm Qasr maritime port docks, Karbala foundry mills.
View BWER-CPCD-120 Blueprint
HIGHWAY WEIGH-IN-MOTION UP TO 130 KM/H

High-Speed Highway WIM

Quartz crystal sensors embedded flush inside road pavement. Weighs axle-by-axle at normal highway speeds without stopping traffic.

Excavation Depth: 70mm Milled Slot
Throughput Speed: Up to 130 km/h
Traffic Disruption: Zero (Free Flow)
Sensor Tech: Piezo-Quartz Lines
Key Iraq Sites: Iraqi Expressway 1 toll plazas, Safwan / Ibrahim Khalil customs corridors, ministry weight enforcement.
View BWER-HSWIM-150 Blueprint
DEMOUNTABLE SKID 48-HR RELOCATION

Mobile Relocatable Skid Scale

Integrated steel sub-frame base with folding steel ramps. Installs on compacted gravel in under 48 hours without civil concrete pours.

Excavation Depth: 0m (Zero Concrete)
Setup Time: < 48 Hours
Ramp Requirement: Integral Steel Ramps
Deflection Ratio: < 1/1000 Span
Key Iraq Sites: Road Contractors, Oil Rig Camps, Harvesters
View BWER-MOB-60 Blueprint
Complete 9-Parameter Technical Specification Comparison
SCROLL HORIZONTALLY TO COMPARE METRICS →
Architecture Foundation Depth Water / Basra Flood Spatial Footprint Dynamic Deflection Sulfate / Chemical Lifespan Civil Cost / TCO Target Iraqi Region
Surface-Mounted
BWER-SMP-100
Flat Slab (0m Excavation) Zero Risk (Natural Gravity Drainage) Requires 4.5m–5.5m Approach Incline < 1/1200 Span SA 2.5 Sandblast + Heavy Polyurethane 25–30 Years Lowest Civil Cost
Very Low TCO 		Erbil, Sulaymaniyah, Basra Ports
Flush In-Ground Pit
BWER-PMF-80
1.4m – 1.6m Vault Sump Pump Required (Basra High Risk) Zero Extra (Trucks Turn 90°) < 1/1100 Span Marine Moisture-Proof Epoxy 20–25 Years Moderate Civil Cost
Sump Pump Maintenance 		Baghdad Industrial, Congested Yards
Semi-Pit Low Profile
BWER-SPF-90
400mm – 500mm Shallow High (Stays Above High Water Table) Minimal 1.5m Ramps (Space Saving) < 1/1200 Span Zinc Epoxy Primer + Anti-Chipping Coat 25 Years Economical Civil
Built-in Safety Curbs 		Basra, Nasiriyah, Maysan Marshlands
Reinforced Concrete Deck
BWER-CPCD-120
Deep Concrete Raft / Trench 100% Saltwater & Chemical Proof Standard Concrete Approaches < 1/1500 (Zero Axle Fatigue) ASTM C150 Type V (Sulfate Proof) 40+ Years (Will Not Corrode) Higher Initial Civil
Lowest 30-Year TCO 		Bazian Cement, Karbala Foundries, Oil Refineries
High-Speed WIM
BWER-HSWIM-150
70mm Milled Slot in Road IP68 Hermetic Grout Sealed 0m (Continuous Road Flow) Rigid Roadway Modulus Fuel, Oil & Salt De-icing Resistant 10–12 Years Highway Traffic Low Civil Work
High Sensor Tech 		Highway 1 Checkpoints, International Borders
Mobile Relocatable
BWER-MOB-60
0m (Compacted Hardcore) 100% Safe (Above Grade Skid) Integral Folding Steel Ramps < 1/1000 Span Industrial Epoxy Polyurethane 15–20 Years Zero Concrete Cost
Rapid Relocation ROI 		Road Contractors, Oil Rig Camps, Harvesters

Iraqi Geo-Climatic & Soil Mechanics Engineering Advisory

Southern Iraq (Basra, Dhi Qar, Maysan)

Groundwater sits only 0.8m to 1.5m below grade with severe sulfate concentrations (SO4 > 3,500 mg/L). Traditional deep 1.6m pits flood persistently, causing junction box failure.

Bwer Recommends: Surface Pitless (BWER-SMP-100) or Semi-Pit (BWER-SPF-90) with IP69K hermetic load cells and ASTM C150 Type V cement.
Northern Iraq (Erbil, Sulaymaniyah, Duhok)

Heavy sub-zero winter freeze cycles (-10°C) combined with high-tonnage limestone clinker quarry transport. Surface pits must resist frost heave and concrete flaking.

Bwer Recommends: Reinforced Concrete Composite (BWER-CPCD-120) with air-entrained C40 concrete or Heavy IPE 500 Surface Steel.
Central Corridor (Baghdad, Anbar, Kirkuk)

Severe real estate confinement with high vehicle turnaround frequencies (up to 400 trucks/day). Long 5m approach ramps are physically unviable.

Bwer Recommends: In-Ground Flush Pit (BWER-PMF-80) with automatic sump dewatering and ANPR plate automation.
NATIONWIDE TURNKEY EXECUTION

Turnkey Installation, Stamping & Calibration Across Iraq

Speak with Turnkey Engineer
01

Civil Excavation & Slab

Plate bearing tests, C30/C37 reinforced concrete casting, approach ramps, and underground conduit loops.

02

Steel Erection & Alignment

Heavy crane placement of IPE girders, laser leveling, 17-4 PH load cell mounting, and copper loop grounding.

03

COSQC Official Stamping

Certified test trucks with 100 metric tons of test weights. Issuance of Iraqi legal metrology stamping certificate.

04

ANPR & ERP Automation

Multi-lingual Kurdish/Arabic/English software, barrier gates, Iraqi plate cameras, and live cloud ERP sync.

Get In Touch

Consult With Our Weighbridge Engineers

Contact our engineering department today for customized advice, foundation drawings, and transparent pricing tailored to your site.

60-Minute Response Guarantee
Free AutoCAD Foundation Drawings
Iraqi COSQC Certified Partner

Request Direct Engineering Proposal

Technical specifications, AutoCAD layouts and formal pricing within 60 minutes

🔒 100% Confidential Inquiry • Official Iraqi COSQC Partner • Zero Obligations

Direct Engineering Line

24/7 Priority Hotline
+964 770 654 5544

Direct access to Senior Metrology Engineers across all 18 Iraqi Governorates

Instant WhatsApp Consultation

Instant
+9647706545544

Instant delivery of AutoCAD foundation blueprints, price lists & technical datasheets

Main Offices

Iraq Nationwide
Baghdad (Central HQ): Industrial Area, Iraq
Kurdistan & Kirkuk Hub: Kalar / Sulaymaniyah Highway
Basra & Southern Hub: Logistics & Port Services

Mobile technical teams and calibration test trucks active in all Iraqi provinces
